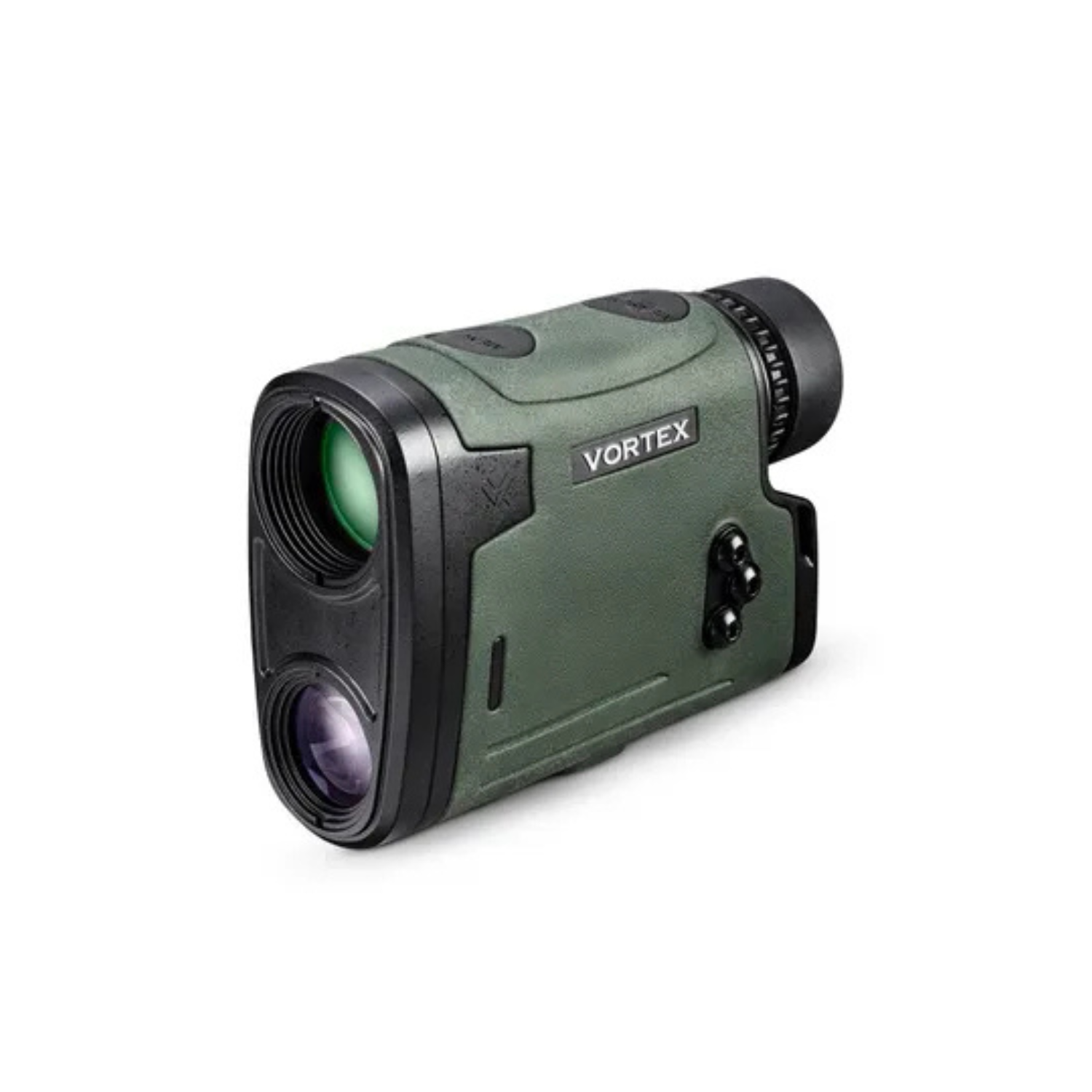

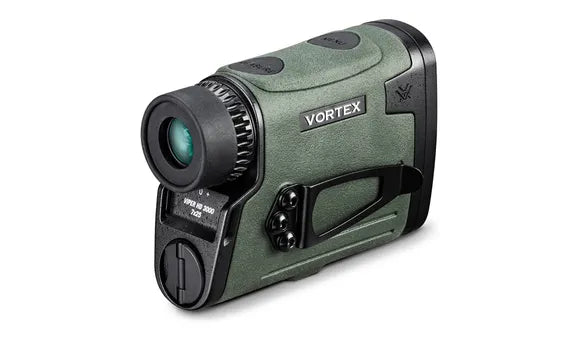

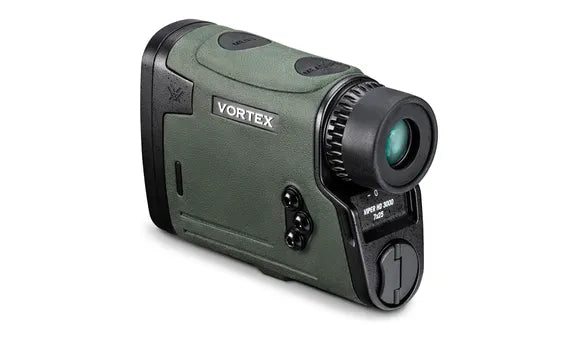

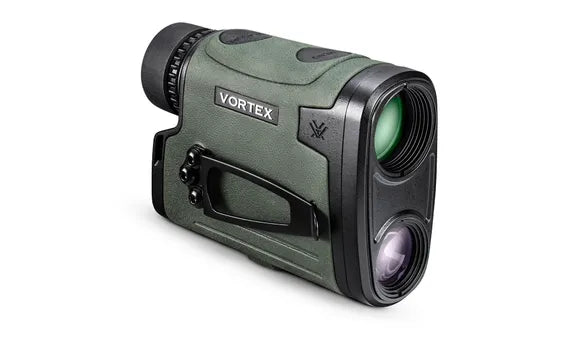

Vortex Viper HD 3000 Yards 7x Magnification
Vortex Viper HD 3000 Yards 7x Magnification
Couldn't load pickup availability
Built to help you excel no matter the hunting challenge, the Viper® HD 3000 delivers outstanding versatility, ranging speed, and capability. Whether you’re locking in on bugling elk across a distant meadow or ranging a rutting buck moving fast through thick timber, the Viper® HD 3000 puts you in control. Lightweight and built tough, it doesn’t just adapt—it ensures you execute every shot with lethal precision, taking your place at the top of the food chain.
Specifications:
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 25 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Eye Relief | 15.5mm |
| Angular Field of View | 6.0º |
| Linear Field of View | 314' @ 1000 yds |
| Range Reflective (yards) | Up to 3,000 yds. |
| Range Tree (yards) | Up to 2,300 yds. |
| Range Deer (yards) | Up to 2,000 yds. |
| Min Range | 6 yds. |
| Accuracy | 1 yds. @100 yds. |
| Length | 4.2" |
| Height | 3.1" |
| Width | 1.7" |
| Weight | 9.1 oz. |
| Max Angle Reading | +/- 89º |
Features:
| Ranging Modes |
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target. Line of Sight (LOS): Displays the actual line of sight range. Scan Feature: Displays continuous distance readings while panning across a landscape.
|
|---|---|
| Target Modes |
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations. First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects. Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc. Extended Laser Range (ELR) Mode: Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly for extended range distances. Best used on a tripod.
|
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Easy-to-use-Menu | Intuitive, easy-to-use menus feature a simple, clean illuminated display. |
| Ranging Format | Range in yards or meters. |
| Diopter | Adjusts for differences in a user's eyes. Located on the eyepiece. |
| Rugged Design | Built to handle tough situations. Compact and lightweight. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Utility Clip | Provides quick external access on webbing or flat-edged surfaces. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of impact. |
| Tripod Adaptable | Allowing use on a tripod or car window mount. Tripod adapter may be required. |
Reticle:
The Viper HD 3000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
