Vortex Optics

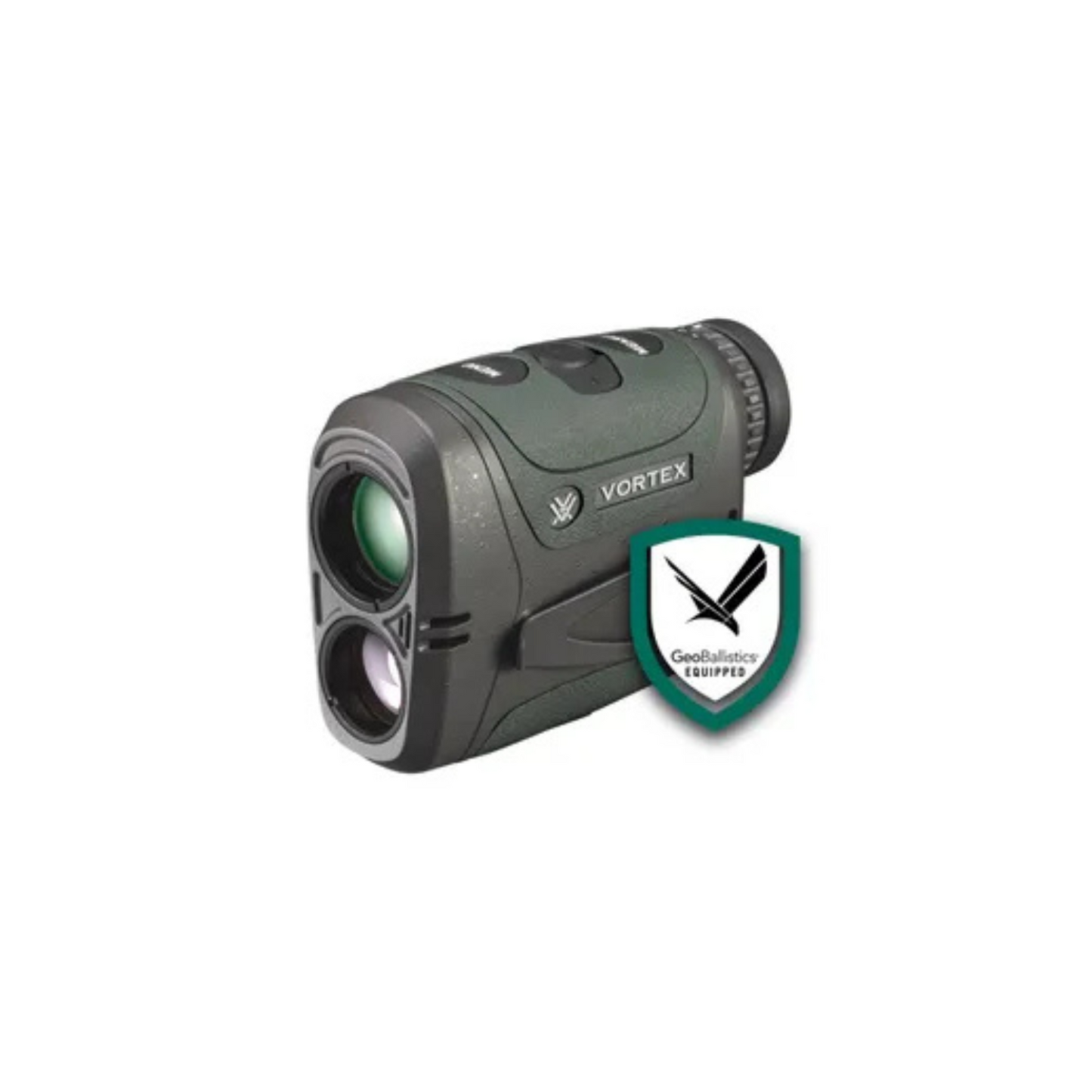

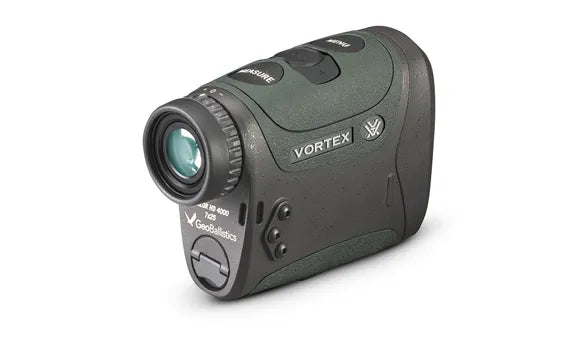

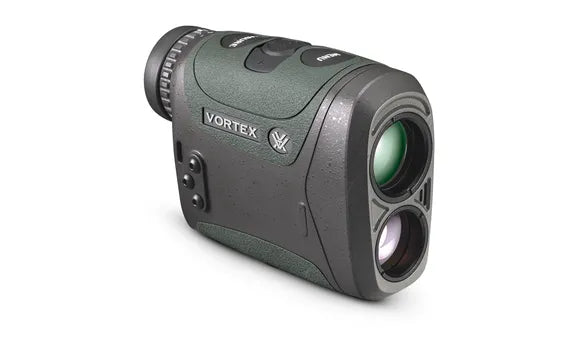

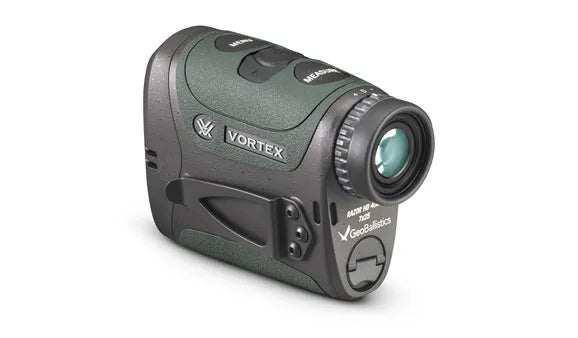

Vortex Razor HD 4000 Yards 7x Magnification GB Ballistic
Vortex Razor HD 4000 Yards 7x Magnification GB Ballistic
Couldn't load pickup availability
One device. All the range, environmental, and ballistic data you need to make the shot of a lifetime, every time. For precision shooters and open-country hunters, the Razor® HD 4000 GB eliminates the guesswork from longer shots—delivering critical data for first-shot accuracy at the push of a button. Designed for rugged reliability, it’s ready to deliver hair-splitting confidence whether you’re targeting a trophy above the treeline, across an open prairie, or ringing steel out to 4000 yards.
Specifications:
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 25 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Eye Relief | 17.5mm |
| Angular Field of View | 6.5º |
| Linear Field of View | 341' @ 1000 yds |
| Range Reflective (yards) | Up to 4,000 yds. |
| Range Tree (yards) | Up to 2,500 yds. |
| Range Deer (yards) | Up to 2,200 yds. |
| Min Range | 5 yds. |
| Accuracy | .5 yds @ 100 yds. |
| Length | 4.4" |
| Height | 3.2" |
| Width | 1.7" |
| Weight | 10.1 oz |
| Max Angle Reading | +/- 89º |
Features:
| Ranging Modes |
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target. Ballistics (BAL): Displays the actual line of sight range and wind/drop solution. Scan Feature: Displays continuous distance readings while panning across a landscape.
|
|---|---|
| Target Modes |
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations. First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects. Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc. Extended Laser Range (ELR) Mode: Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly for extended range distances. Best used on a tripod. |
| In-Display Wind/Drop Solutions | Equipped with the accurate GeoBallistics® ballistics solver backed by a full up-to-date bullet database. |
| Customize Ballistics Profiles | Customize ballistics profiles via the GeoBallistics® App or use one of three preloaded profiles for popular cartridges. |
| On-Board Environmental Sensors | On-Board compass, humidity, barometric pressure, and exposed temperature sensors for fast acclimations. |
| Two Wind Modes | Features Full Cross Wind Mode and the Patented Wind Bearing Capture Mode. |
| Pairs with Third-Party Devices | Pairs with Kestrel® weather meter devices. |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Dielectric Prism Coatings | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Easy-to-Use Menu | Intuitive, easy-to-use menus feature a simple, clean illuminated display. |
| Ranging Format | Range in yards or meters. |
| Diopter | Adjusts for differences in a user's eyes. Located on the eyepiece. |
| Rugged Design | Built to handle tough situations. Compact and lightweight. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Magnesium Chassis | Decreases weight and increases strength. |
| Utility Clip | Provides quick external access on webbing or flat-edged surfaces. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of impact. |
| Tripod Adaptable | Allowing use on a tripod or car window mount. Tripod adapter may be required. |
Reticle:
The Razor® HD 4000 GB utilizes the on-board GeoBallistics® solver to provide in-display wind/drop solutions and line of sight range when in Ballistics (BAL) Mode.
