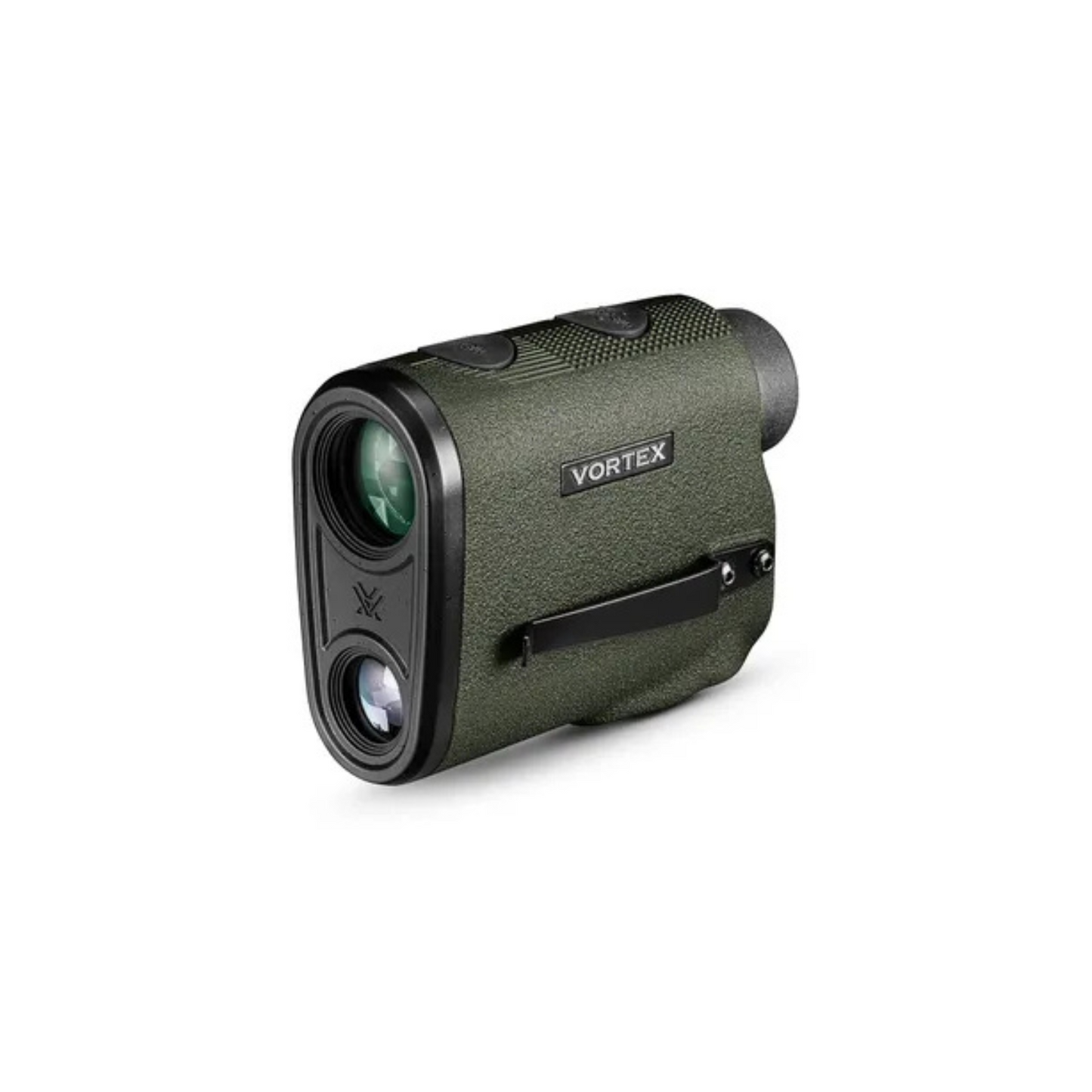

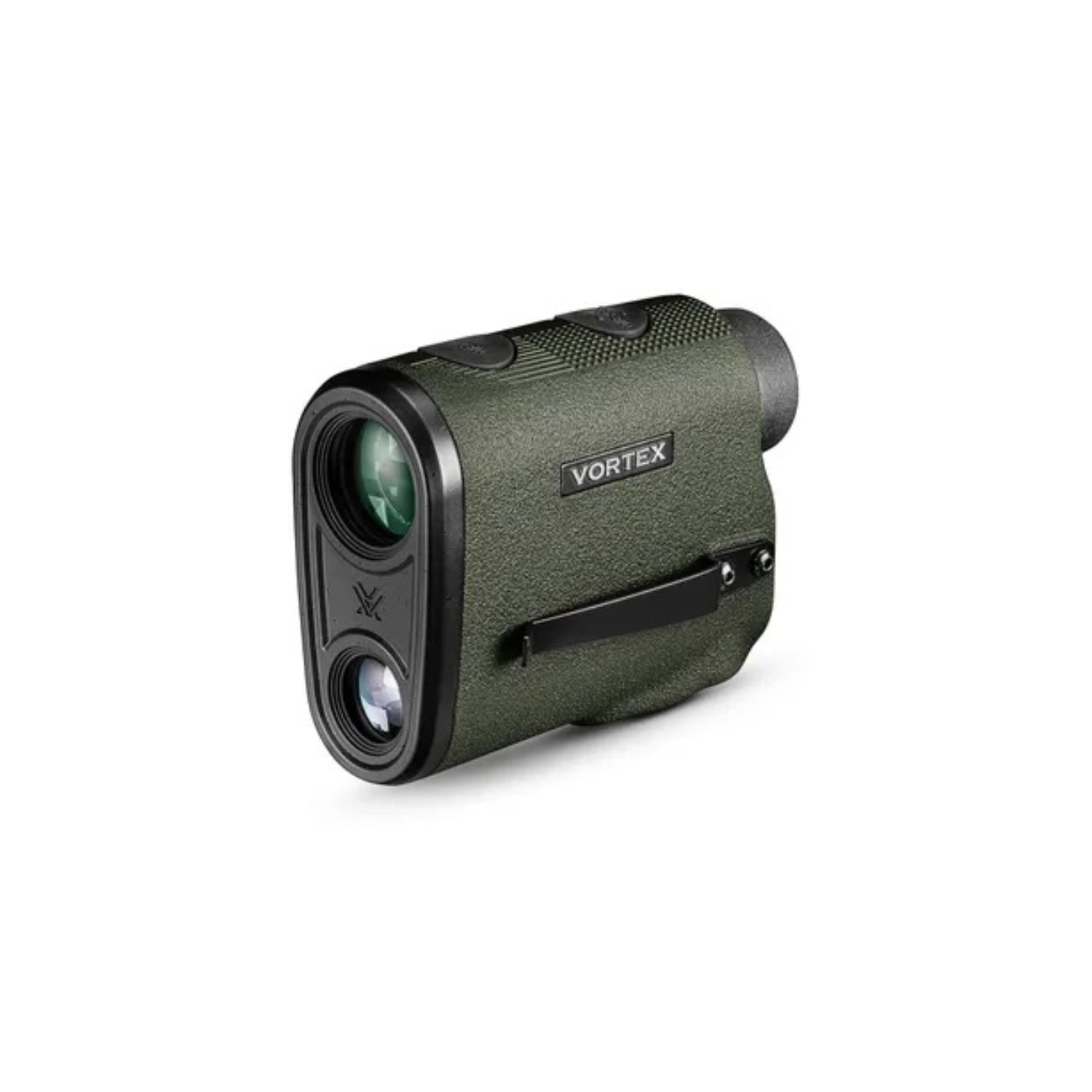

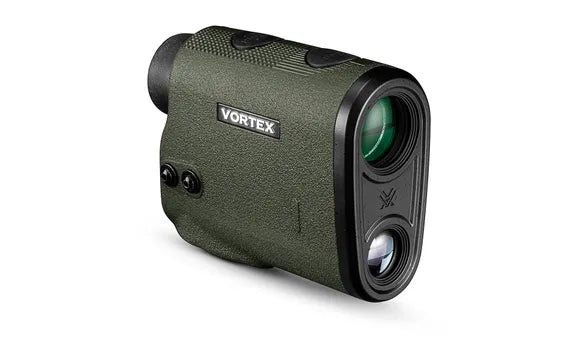

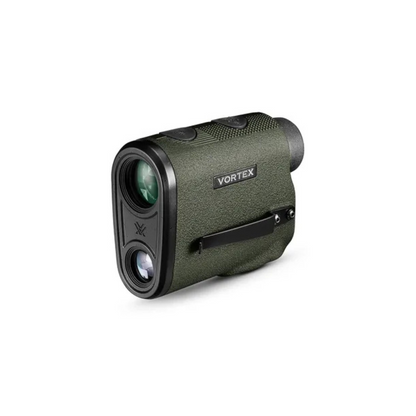

Vortex Diamondback HD 2000 Yards 7x Magnification
Vortex Diamondback HD 2000 Yards 7x Magnification
Couldn't load pickup availability
Made for practical hunters who value no-excuses performance, Diamondback® HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It’s the rangefinder that lives up to its tag-punching promise, hunt after hunt.
Specifications:
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Eye Relief | 16.0mm |
| Angular Field of View | 6.4º |
| Linear Field of View | 335' @ 1000 yds |
| Range Reflective (yards) | Up to 2,000 yds. |
| Range Tree (yards) | Up to 1,800 yds. |
| Range Deer (yards) | Up to 1,400 yds. |
| Min Range | 5 yds. |
| Accuracy | 1 yds. @100 yds. |
| Length | 4.1" |
| Height | 3.1" |
| Width | 1.8" |
| Weight | 7.6 oz. |
| Max Angle Reading | +/- 60º |
Features:
| Ranging Modes |
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target. Line of Sight (LOS): Displays the actual line of sight range. Scan Feature: Displays continuous distance readings while panning across a landscape. |
|---|---|
| Target Modes |
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations. Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
|
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
| XR™ Lens Coatings | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Red OLED Display | Optimized for low light. |
| Ranging Format | Range in yards or meters. |
| Diopter | Adjusts for differences in a user's eyes. Located on eyepiece. |
| Tripod Adaptable | Allowing use on a tripod or car window mount. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of impact. |
Reticle:
The Diamondback HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
