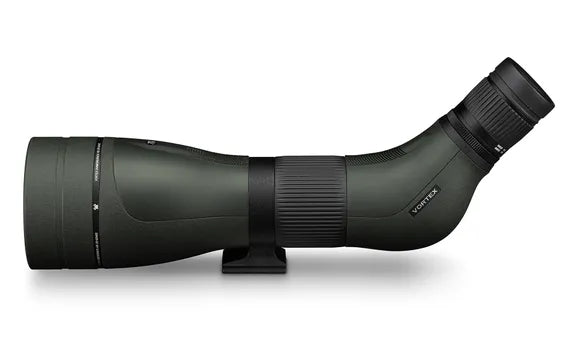

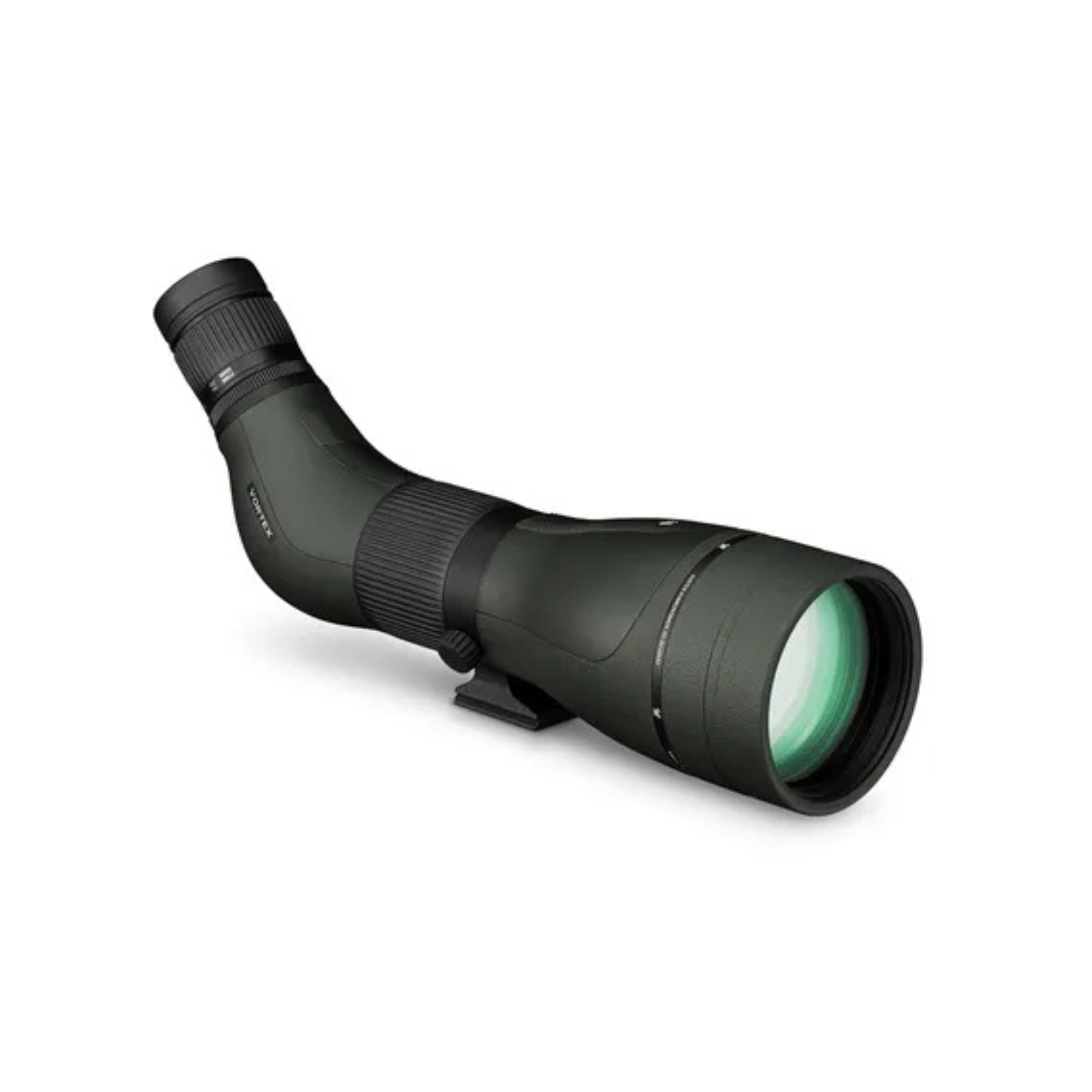

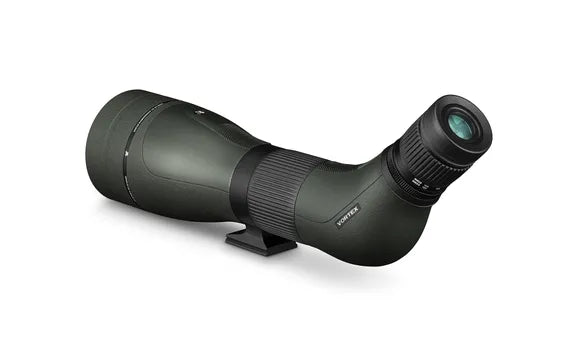

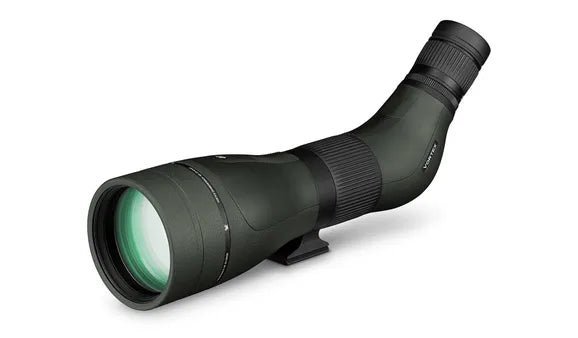

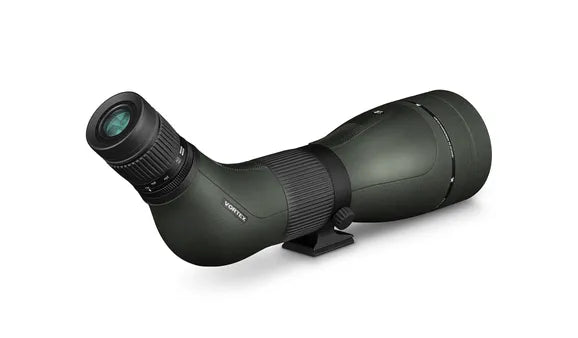

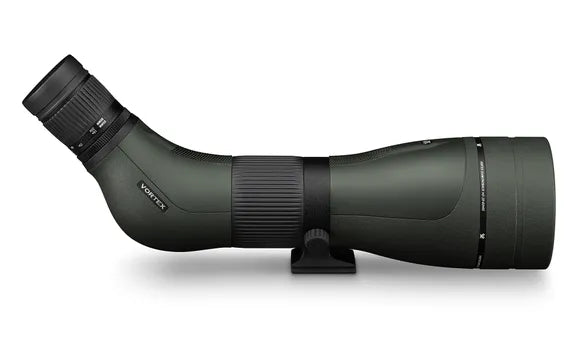

Vortex Diamondback 20-60x85 Angled Spotting Scope

Vortex Diamondback 20-60x85 Angled Spotting Scope

$1,000.00 AUD
$1,000.00 AUD
Sale Sold out
Tax included.
Designed for workhorse reliability and no-nonsense performance, Diamondback® HD delivers sharp images and excellent low-light capability for gritty, hardworking hunters. Built to go the distance season after season, it helps you excel from open plains to rugged mountains. Diamondback® HD is your trusted ally—finding every flicker of opportunity that distance, shadows, and cover can no longer hide.

Specifications:

Magnification 20-60x
Objective Lens Diameter 85 mm
Eye Relief 18.3mm - 20.3mm
Angular Field of View 2.1º - 1.1º
Close Focus 24.6'
Linear Field of View 108' - 60' @ 1000 yds
Length 16.0"
Weight 60.9 oz.

Features:

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses Anti-reflective caotins on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
ArmorTek® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Helical Focus Snag-free for faster, easier packing and mounting.
Rubber Armor Provides a secure, non-slip grip, and durable external protection.
Argon Gas Purged Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Shockproof Designed to withstand the highest levels of impact.
Tripod Adaptable Allowing use on a tripod or car window mount.
Arca-Swiss Compatible Designed to fit the Arca-Swiss standard. Allows for a direct mount with other Arca-Swiss compatible products.

Manuals & Parts:

icon Parts Diagram (PDF) (0.96 MB)
icon Product Manual (PDF) (4.26 MB)
