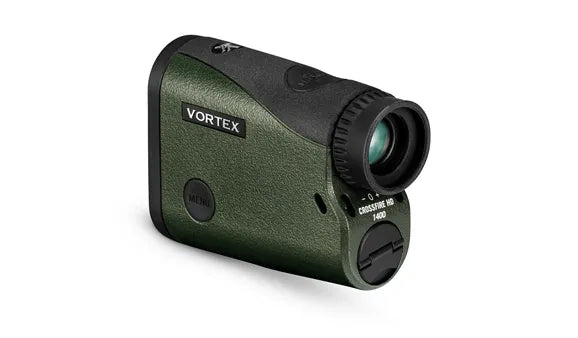

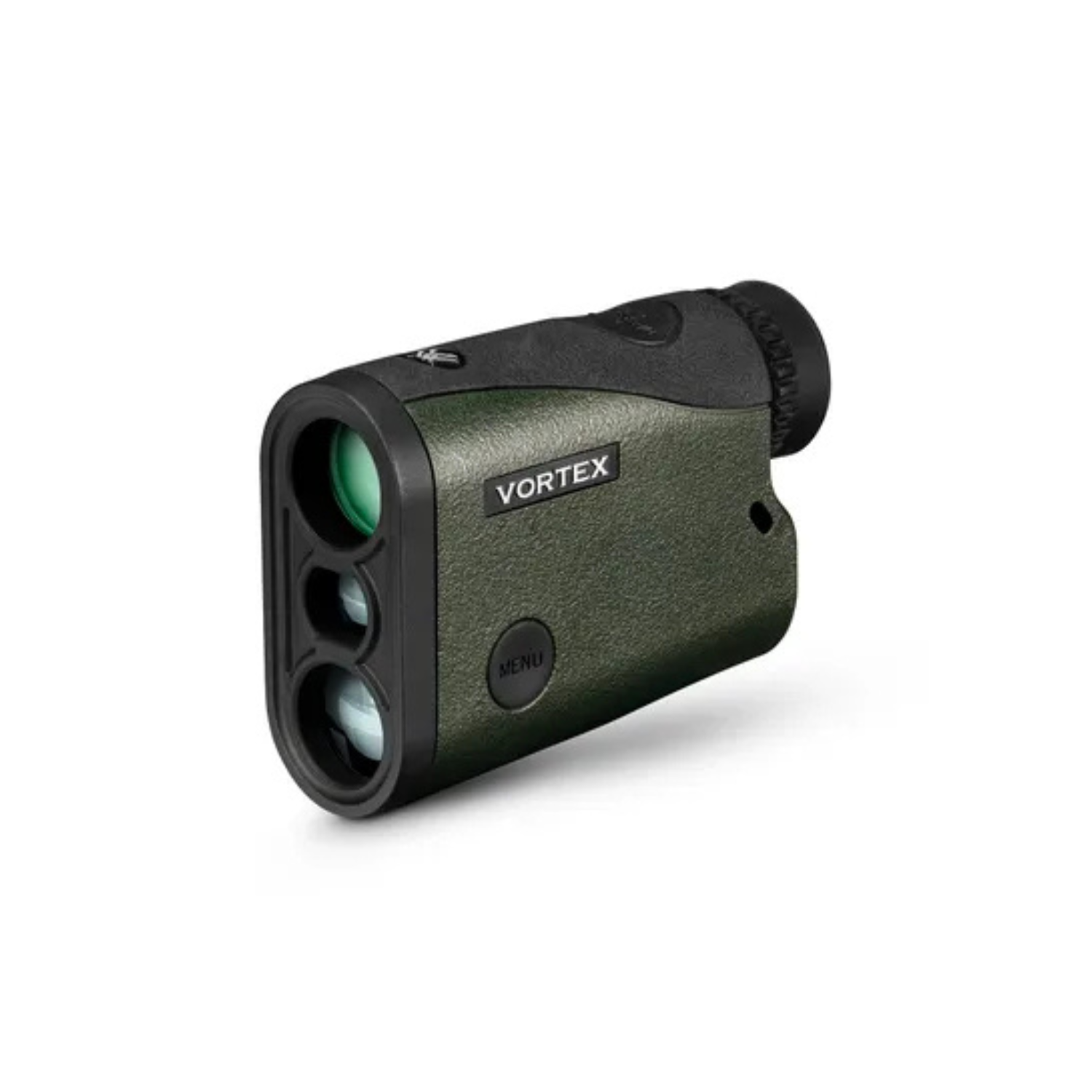

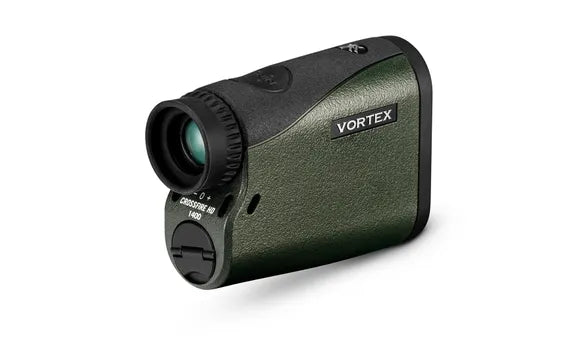

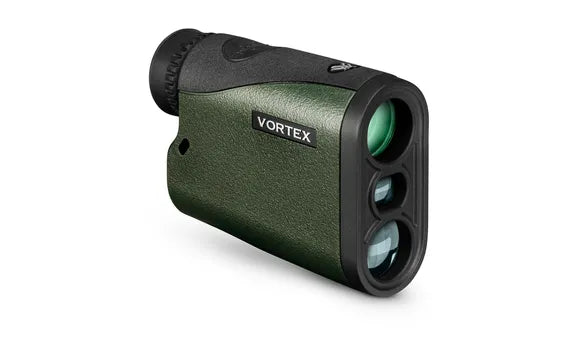

Vortex Crossfire HD 1400 Yards 5x Magnification
Vortex Crossfire HD 1400 Yards 5x Magnification
Couldn't load pickup availability
Whether you’re threading an arrow through tight timber or stretching your reach across an open plain, Crossfire® HD 1400 delivers pure, ranging function and the reliable data you need for confident shots every time. Built tough for the field, with an HD optical system and intuitive controls, the Crossfire® HD 1400 is your no-nonsense rangefinder for confident shooting that fills the freezer.
Specifications:
| Magnification | 5x |
|---|---|
| Objective Lens Diameter | 21 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Eye Relief | 16.0mm |
| Angular Field of View | 7.0º |
| Linear Field of View | 367' @ 1000 yds |
| Range Reflective (yards) | Up to 1,400 yds. |
| Range Tree (yards) | Up to 950 yds. |
| Range Deer (yards) | Up to 750 yds. |
| Min Range | 5 yds. |
| Accuracy | 1 yds. @100 yds. |
| Length | 4.0" |
| Height | 2.9" |
| Width | 1.3" |
| Weight | 4.8 oz. |
| Max Angle Reading | +/- 89º |
Features:
| Ranging Modes |
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target. Line of Sight (LOS): Displays the actual line of sight range. Scan Feature: Displays continuous distance readings while panning across a landscape. |
|---|---|
| Target Modes |
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations. First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects. Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
|
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
| XR™ Lens Coatings | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Red TOLED Display | Optimized for low light. |
| Ranging Format | Range in yards or meters. |
| Diopter | Adjusts for differences in a user's eyes. Located on eyepiece. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of impact. |
Reticle:
The Crossfire HD 1400 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
