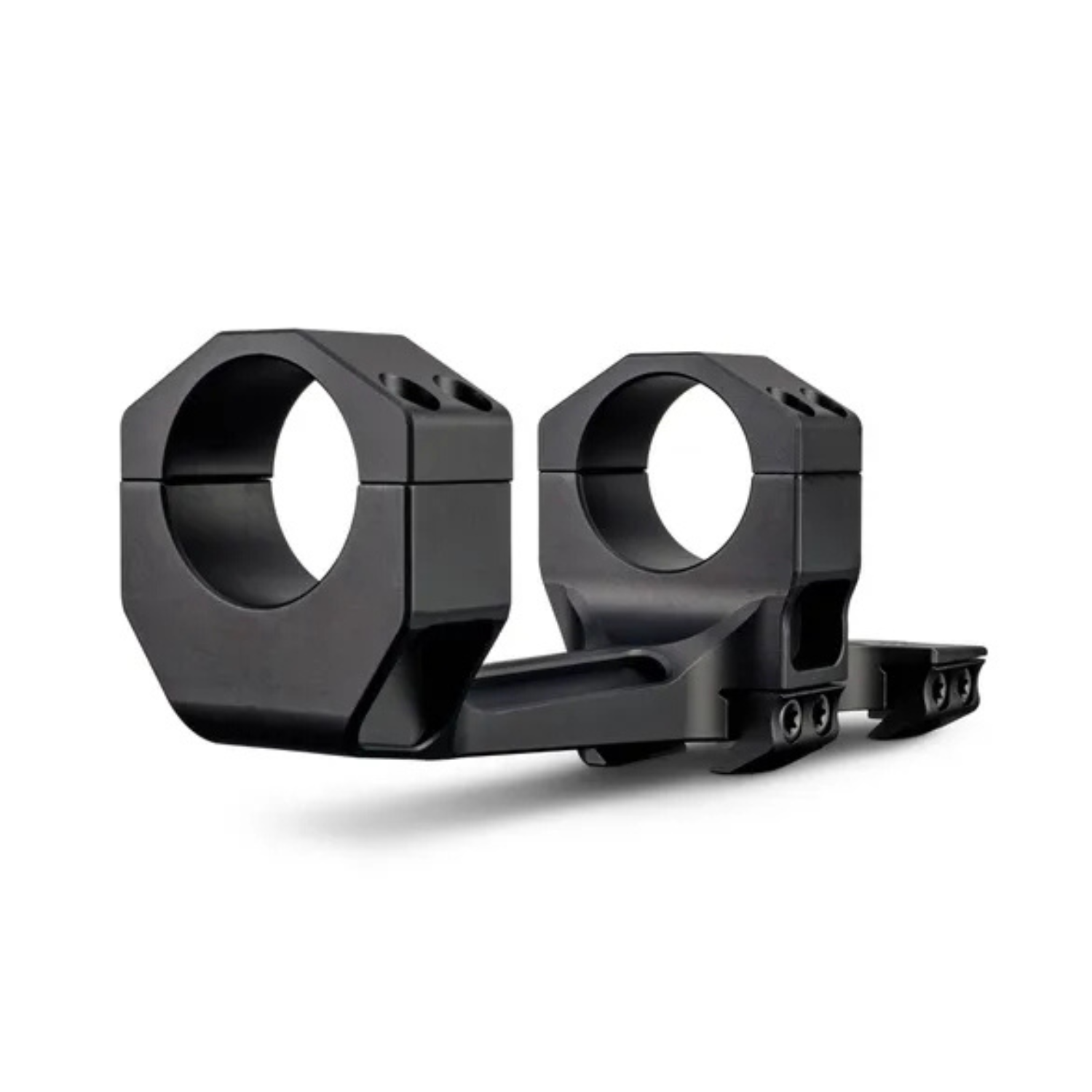

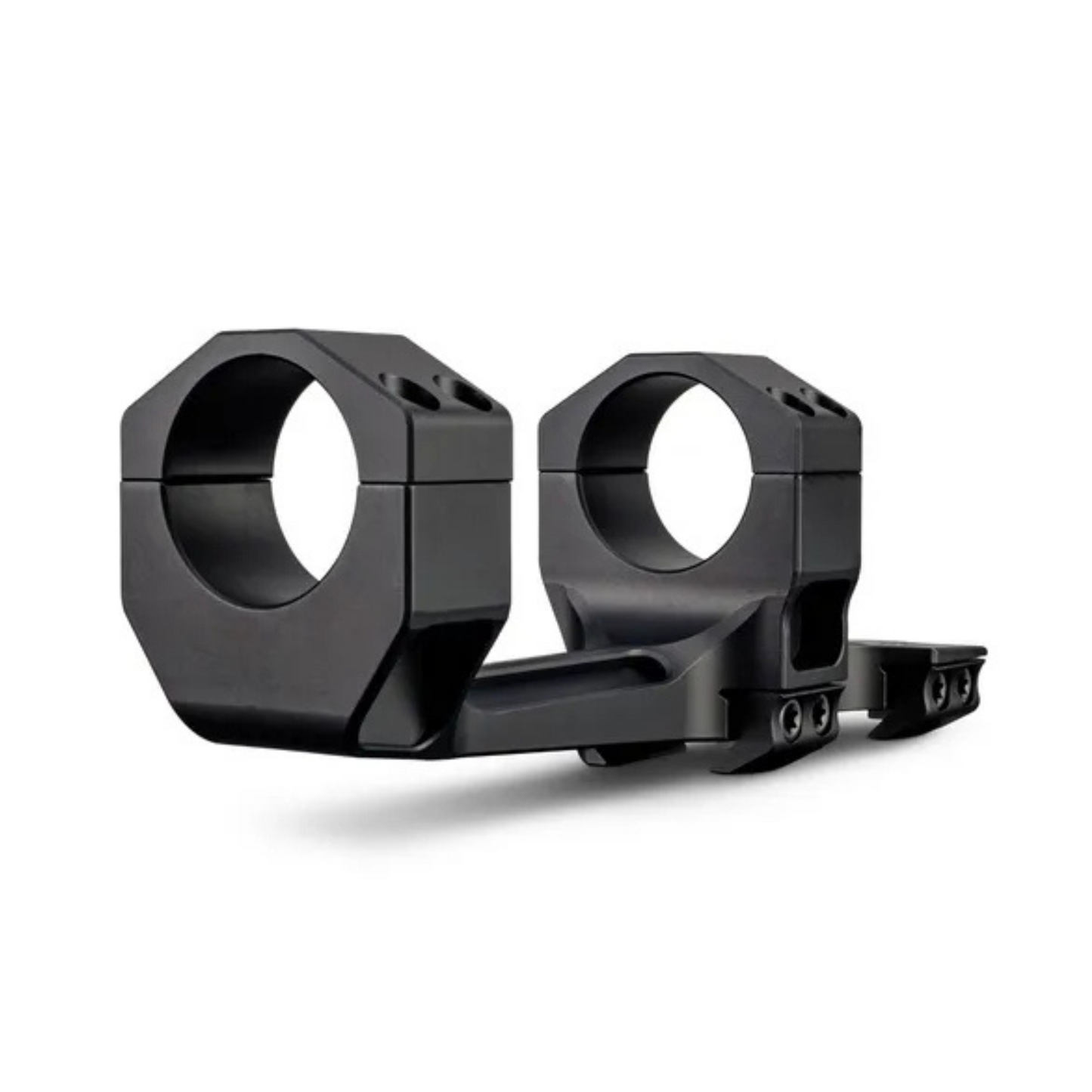

Vortex 30mm Precision Extended Cantilever Mount (20 MOA)
Vortex 30mm Precision Extended Cantilever Mount (20 MOA)
Regular price
$515.00 AUD
Regular price
Sale price
$515.00 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
Available in several different sizes with options for 20 MOA cant. These extended cantilevers are designed for mounting scopes with a forward location, providing correct eye relief and head placement. The cantilever ring mount positions the center of the riflescope tube at a height of 1.574” (40mm) from the base.
Specifications:
| Tube Size | 30mm |
|---|---|
| Ring Height | Extra-Hight Absolute |
| Cap Screw Torque | 15-18 in-lbs. |
| Base Screw Torque | 45-50 in-lbs. |
| Weight | 227 g (8 oz) |
Features:
| Rugged, Lightweight, Snag-Free Design. |
|---|
| Horizontally split for easier mounting. |
| Commonality between fasteners and components for one-tool mounting. |
| Precision Machined 7075 T6 Aluminum. |
| Type 3 Low-Glare Matte Black Anodized. |
| Robust, Grade 8 Fasteners. |
| 2" Offset. |
