Vortex Optics
Vortex Viper 6.5-20x50 BDC (MOA) PA
Vortex Viper 6.5-20x50 BDC (MOA) PA
Couldn't load pickup availability
Whether you're hunting Western big game, predators, or varmints, the Viper® 6.5-20x50 provides exceptional accuracy and control for ethical shots at medium to extended ranges. Its ultra-rugged construction withstands harsh weather and rough handling, ensuring reliable performance when you need it. A high magnification range, advanced second focal plane reticle, and outstanding optical clarity combine to deliver sharp target identification and hairsplitting shots at any distance.
Viper 6.5-20x50 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.44 | 2.8 | 2.2 | 6.37 | 4.65 | 3.24 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.27 | 1.72 |
Specifications:
| Magnification | 6.5-20x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.1" |
| Field of View | 17.4' - 6.2' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 65 MOA |
| Max Windage Adjustment | 65 MOA |
| Parallax Setting | 50 yds. - ∞ |
| Length | 14.4" |
| Weight | 21.6 oz |
Features:
| XD™ Optical System | Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. |
|---|---|
| XR™ Lens Coatings | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
| Argon Gas Purged | Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |

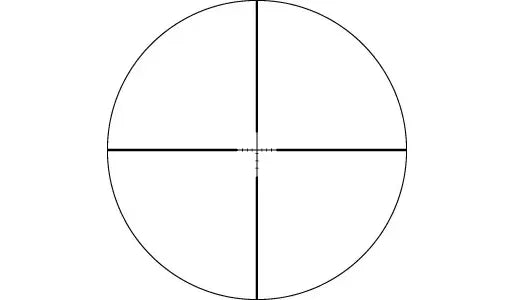

Reticle:
The customized design of this reticle helps eliminate guesswork on hold-over and windage corrections. Good for hunting and shooting at varying ranges where estimating hold-over is a concern.
Manuals & Parts:
