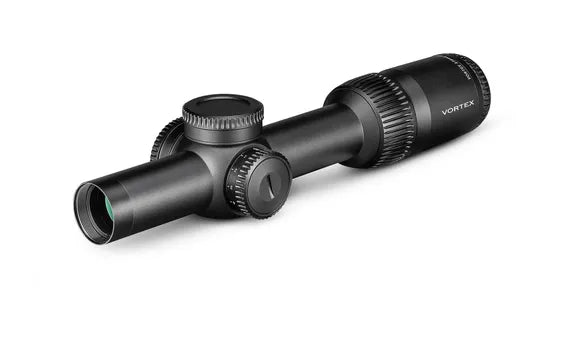

Vortex Strike Eagle 1-8x24 EBR 8 (MOA) FFP
Vortex Strike Eagle 1-8x24 EBR 8 (MOA) FFP
Couldn't load pickup availability
Strike Eagle® is your tactical powerhouse, delivering the versatility and optical performance to propel your shooting game higher. Rugged construction, great glass, advanced features—all to help you excel whether you’re run-and-gun shooting or engaging targets out to 1,000 yards. Strike Eagle® adapts to every challenge, driving your skills to places you never thought possible.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | |
| 10.4 | 1.9 | 2.5 | 6.0 | 3.8 | |
| Heights | |
|---|---|
| H1 | H2 |
| 1.18 | 1.89 |
Specifications:
| Magnification | 1-8x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-8 (MOA) |
| Eye Relief | 3.9" |
| Field of View | 113.6' - 14.1' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 145 MOA |
| Max Windage Adjustment | 145 MOA |
| Parallax Setting | 125 yds. |
| Length | 10.4" |
| Weight | 23.9 oz |
Features:
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
|---|---|
| First Focal Plane Reticle | A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Low Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |
Reticle:
Our exclusive EBR-8 MOA first focal plane, glass-etched, illuminated reticle facilitates rapid shooting from point blank out to 600 yards with popular .223/5.56mm and .308/7.62mm loads. This reticle also can be used with a wide variety of other calibers and loads using the BDC hashmarks.
Manuals & Parts:
