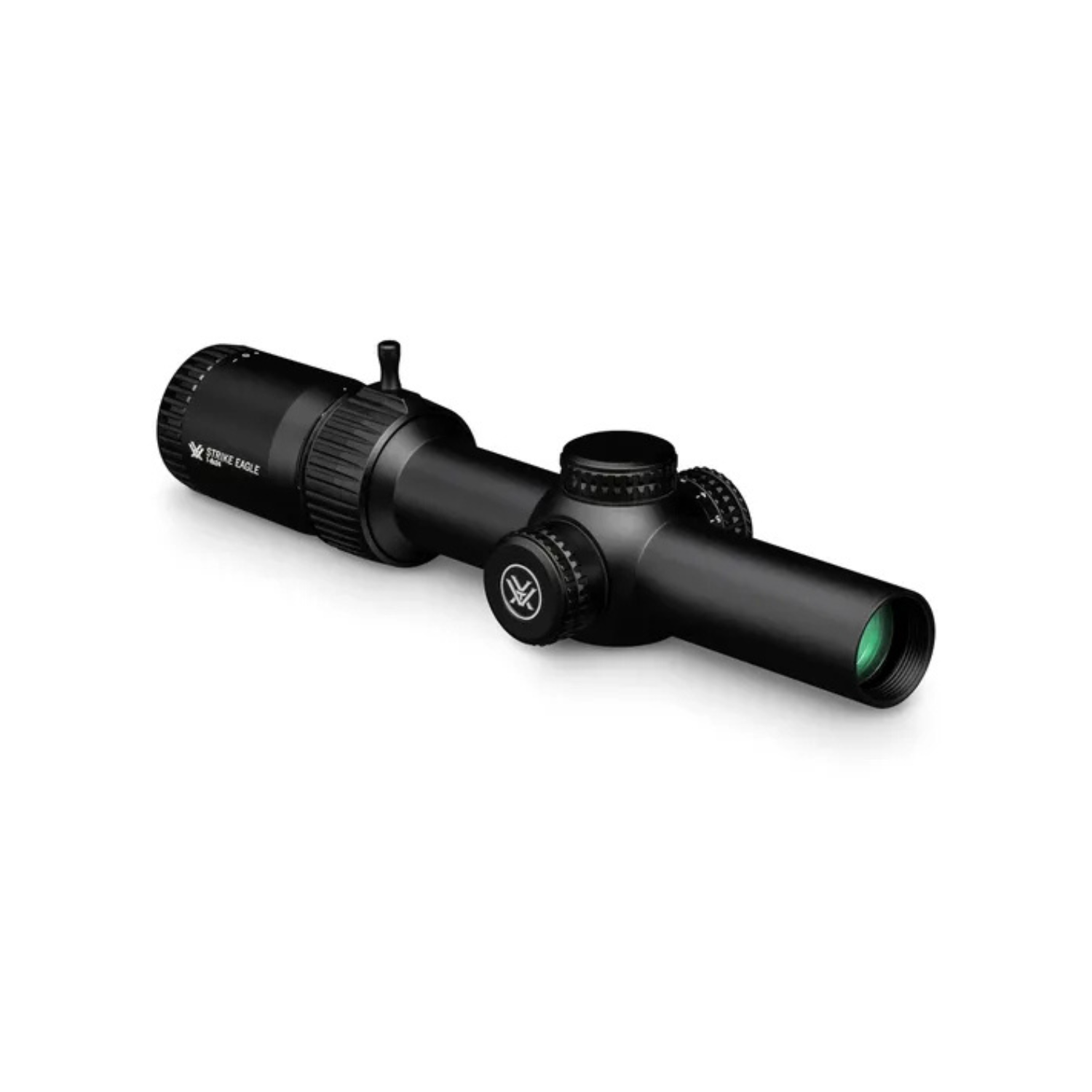

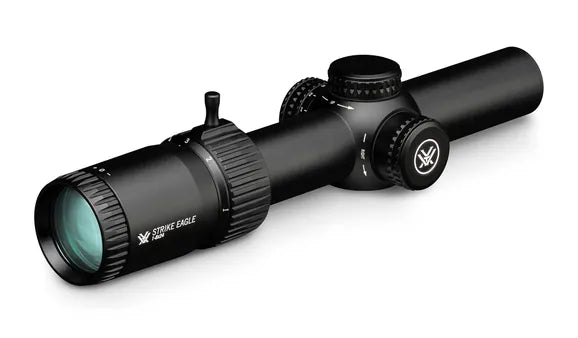

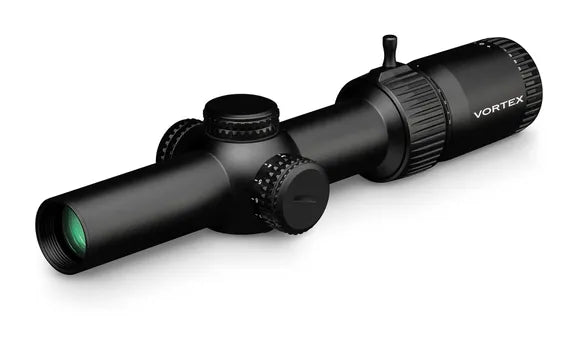

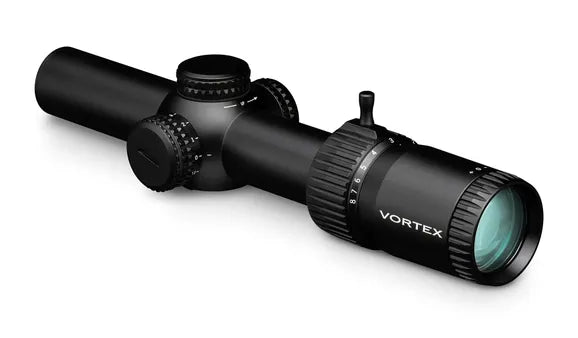

Vortex Strike Eagle 1-8x24 AR BDC3 (MOA)
Vortex Strike Eagle 1-8x24 AR BDC3 (MOA)
Couldn't load pickup availability
Strike Eagle® is your tactical powerhouse, delivering the versatility and optical performance to propel your shooting game higher. Rugged construction, great glass, advanced features—all to help you excel whether you’re run-and-gun shooting or engaging targets out to 1,000 yards. Strike Eagle® adapts to every challenge, driving your skills to places you never thought possible.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L6 | |
| 10.0 | 2.8 | 1.8 | 6.4 | 3.5 | |
| Heights | |
|---|---|
| H1 | H2 |
| 1.2 | 1.7 |
Specifications:
| Magnification | 1-8x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | Second Focal Plane |
| Reticle | AR-BDC3 |
| Eye Relief | 3.5" |
| Field of View | 109.0' - 14.4' @100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 44 MOA |
| Max Elevation Adjustment | 140 MOA |
| Max Windage Adjustment | 140 MOA |
| Parallax Setting | 100 yds |
| Length | 10.0" |
| Weight | 17.4 oz |
Features:
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
|---|---|
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Low Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |
Reticle:

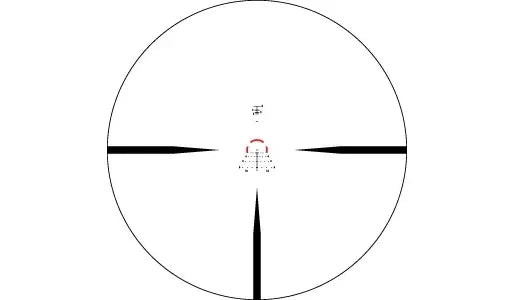

AR-BDC3 RETICLE
The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 16.625 MOA broken circle gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.
