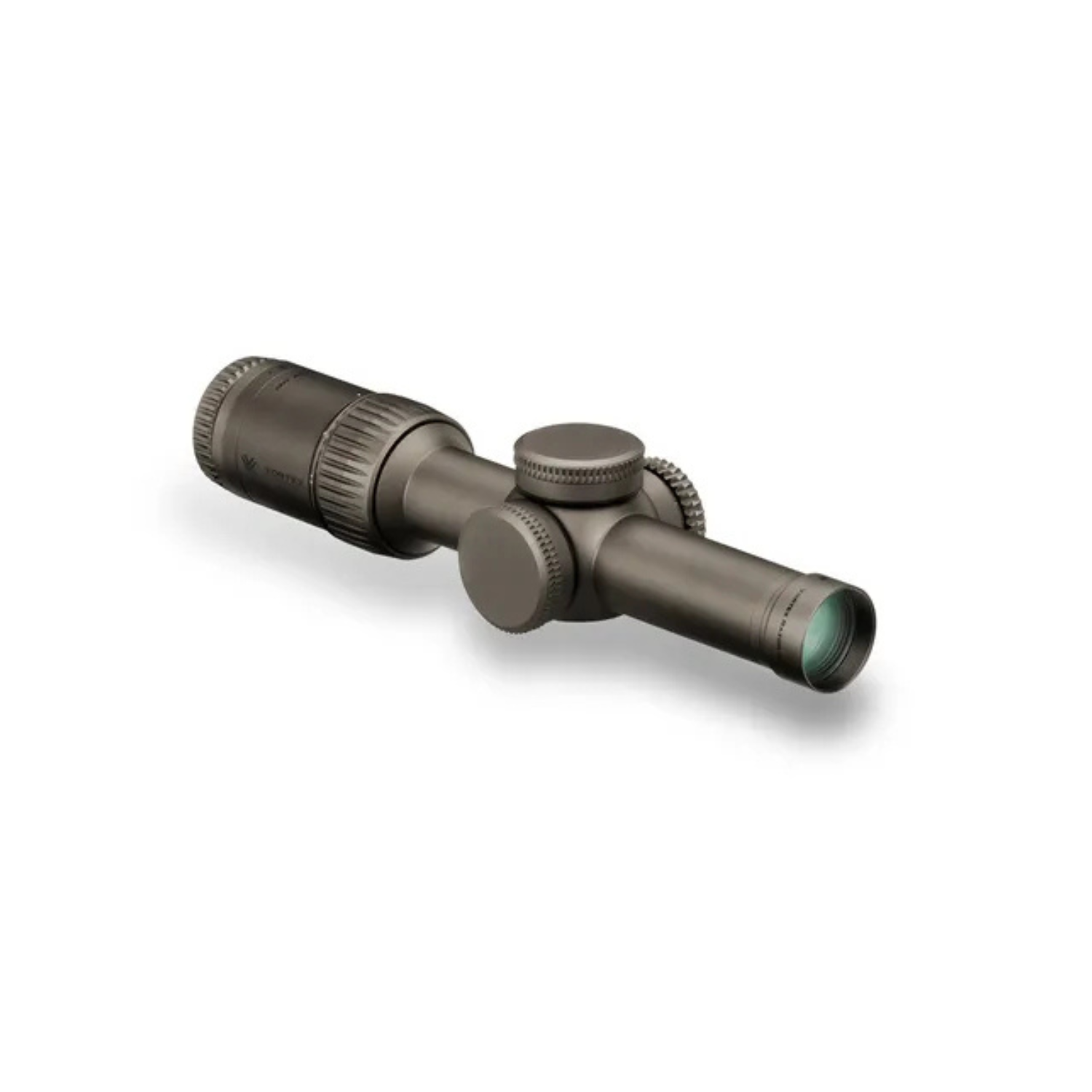

Vortex Razor HD Gen II E 1-6x24 VMR 2 (MRAD)
Vortex Razor HD Gen II E 1-6x24 VMR 2 (MRAD)
Regular price
$2,539.00 AUD
Regular price
Sale price
$2,539.00 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
Razor® HD Gen II-E delivers enhanced performance in a lightweight, streamlined package for MIL/LE professionals and competitive shooters. Top-tier precision. Faster handling. Designed for those who demand superior optical clarity and mobility in high-speed, high-pressure engagements. Ready to dominate close-quarters and mid-range scenarios, the Razor® HD Gen II-E is built for the highest-level of performance—without compromise.
Razor HD Gen II-E 1-6x24 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 10.1 | 2.50 | 1.5 | 5.67 | 0.85 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.29 | 1.81 |
Specifications:
| Magnification | 1-6x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | Second Focal Plane |
| Reticle | VMR-2 (MRAD) |
| Eye Relief | 4.0" |
| Field of View | 115.2' - 20.5' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | .2 MRAD |
| Travel Per Rotation | 20 MRAD |
| Max Elevation Adjustment | 43 MRAD |
| Max Windage Adjustment | 43 MRAD |
| Parallax Setting | 100 yds. |
| Length | 10.1" |
| Weight | 21.5 oz |
Features:
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increases light transmission for greater clarity and low-light performance. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| APO (Apochromatic) System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Erector Tube System | Precision-machined from aircraft-grade aluminum with anti-galling properties for a lighter weight, stronger, more durable tube. Stainless steel offset coil spring erector biasing system withstands higher stresses, allowing more internal elevation and windage travel with better freedom of movement for the ultimate turret precision. |
| Friction Reduction System | Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with the ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Waterproof | Designed to withstand harsh weather conditions. |

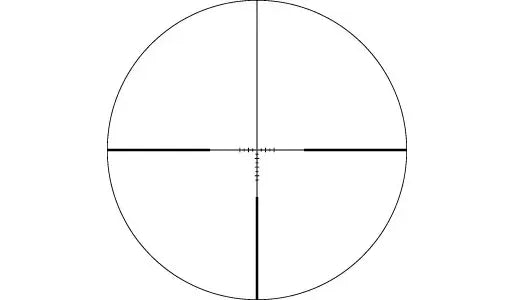

Reticle:
VMR-2 (MRAD)
The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MRAD-based subtension lines for ranging, holdover and windage corrections.
