Red Earth

MAKStorm 4x30i HD, Premium Riflescope with MAKMasterLock

MAKStorm 4x30i HD, Premium Riflescope with MAKMasterLock

Regular price $3,189.00 AUD
Regular price Sale price $3,189.00 AUD
Sale Sold out
Tax included.

MAKstorm 4x30i HD is a prismatic sight with fixed 4x magnification and was designed especially for AR platforms.

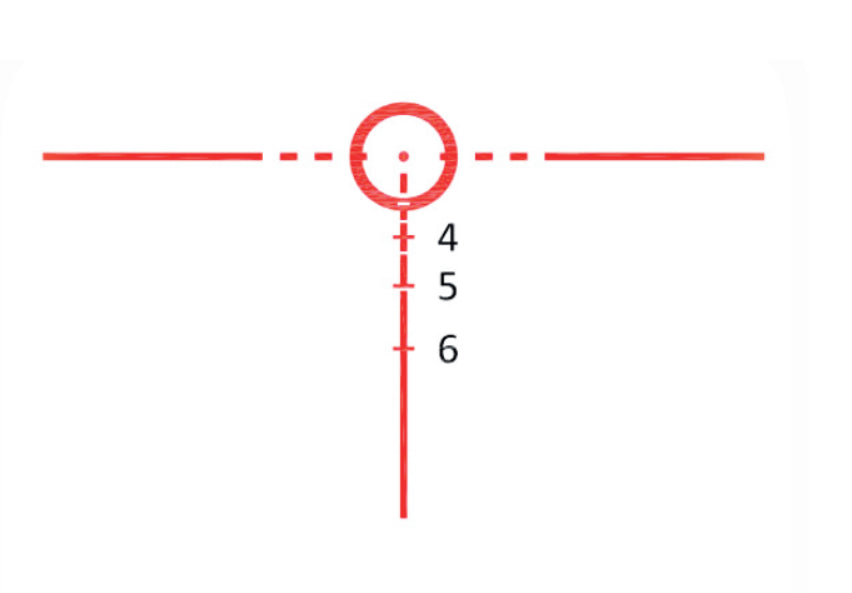

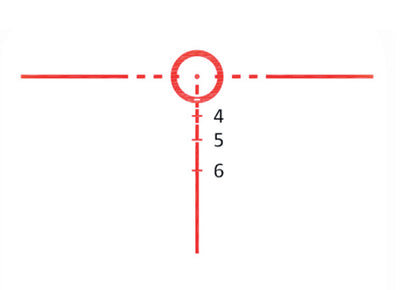

The ballistic Circle Dot special reticle, which can be illuminated in 12 brightness levels, is used for fast target acquisition and is equipped with ballistic dots for 200 to 600 meters. The graduation refers to common labs in .308Win and .223Rem calibers.
The sharp optical system with HD lenses and abrasion-resistant coatings has 85% daylight transmission, achieving the highest value achieved in optics of this class.

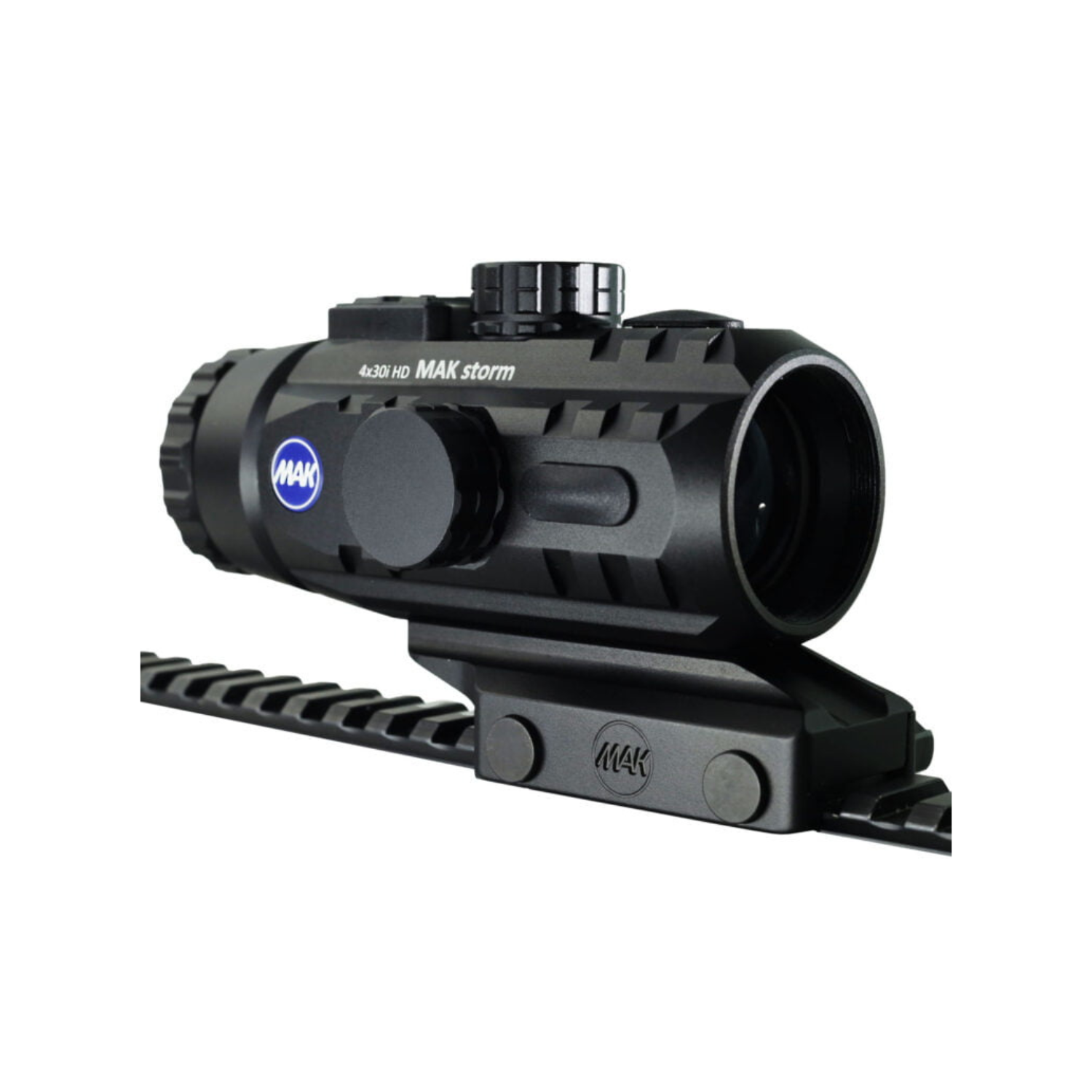

A MAK Masterlock quick-release mount of high-quality German manufacture, compatible with all Mil-Std manufactured Picatinny Rails, is already supplied with the optic. The eye relief of the optic has been ideally matched to all AR15 systems thanks to the repeatable and specially designed mount

First-class light transmission, optimum resolution and a wide field of view for fast target acquisition in dynamic situations characterize this reflex sight with fixed 4x magnification.

Highlights:

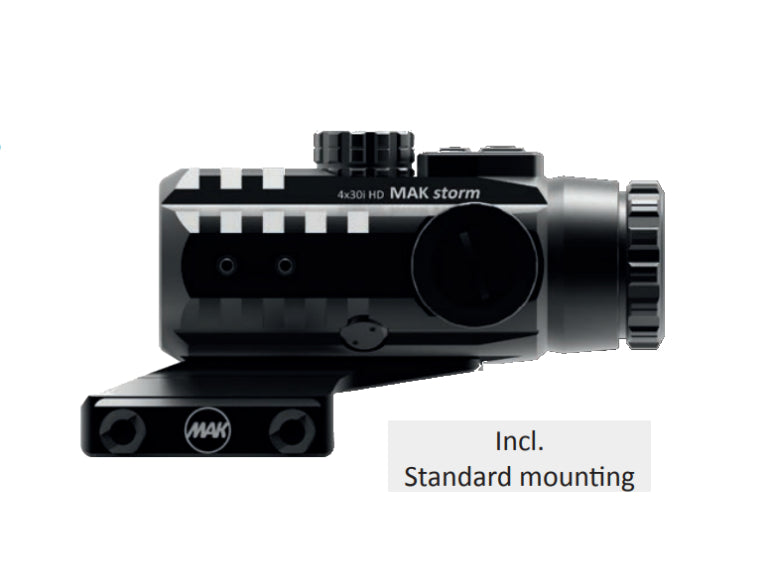

  • Comes with MAKMasterlock Picatinny mount included.

  • brilliant HD optics from renowned Japanese top production

  • illuminable ballistic Circle Dot reticle

  • Shock load capacity up to 1000 "G

  • Nitrogen filling

Technical data:

 Magnification 4x
 Center tube diameter 30mm
 Objective lens 30 mm
 Exit pupil 7,3mm
 Interpupillary distance 57mm
 Diopter compensation (dpt) +3/-3

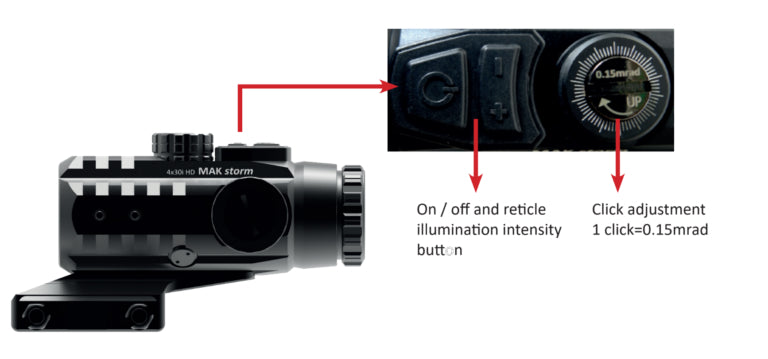

 Illumination Illuminated reticle 10+2 steps
 Accuracy / click (mm/100 m) 0.1 mrad
 Reticle Ballistic Circle Dot
 Battery type  CR2032
 Color Black
 Nitrogen filling Yes
 Weight 400 g
 Dimensions 120x64x56mm
 Waterproof 4 meters
 Light transmission 88%
 Maximum adjustment travel height -/+ 30 MOA
 maximum adjustment travel side -/+ 15 MOA
 Field of view @ 100 meters 12,5 meters
 Battterie runtime approx. 360h
 Parallax free 100 meters
 Click adjustment 0,15 MRAD / click
