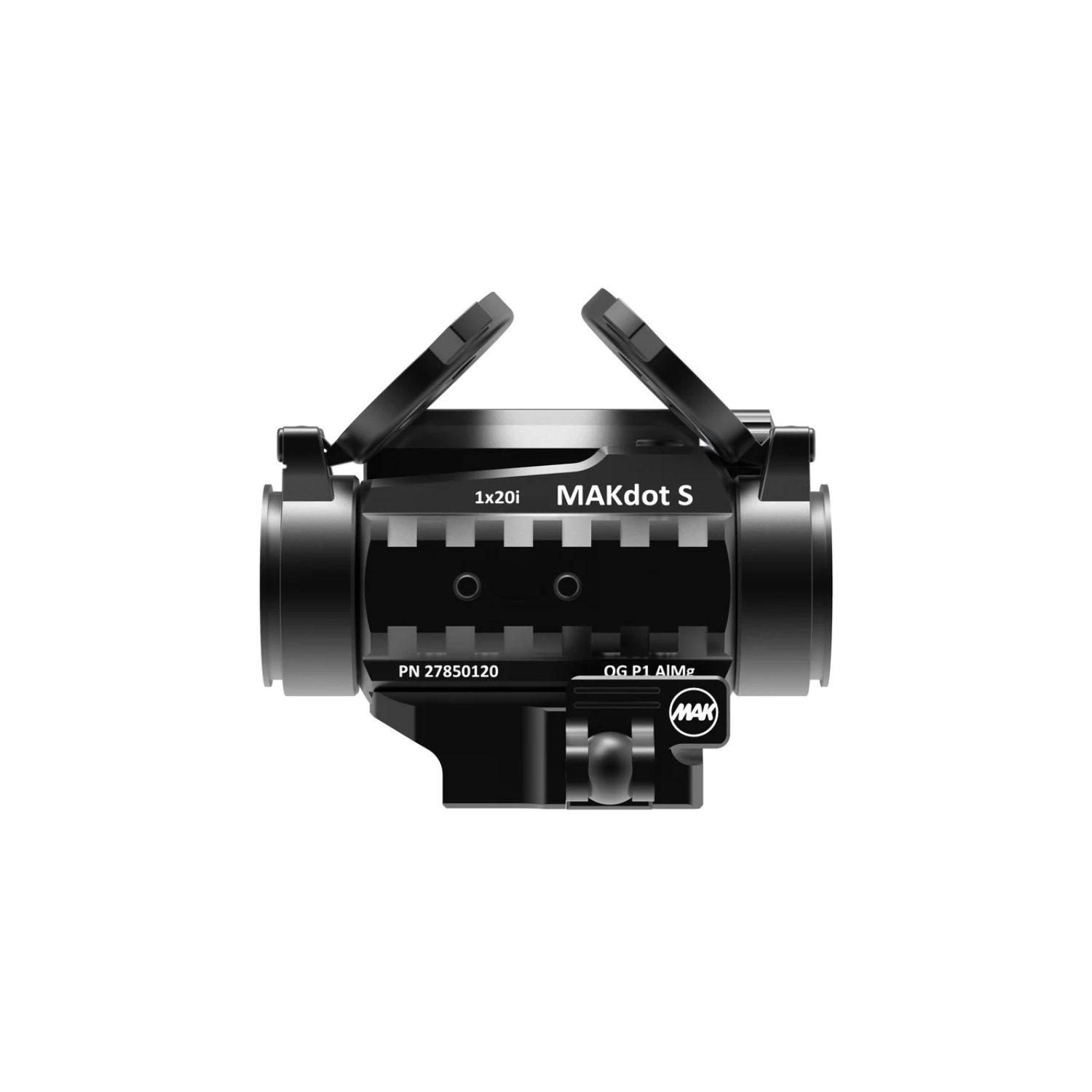

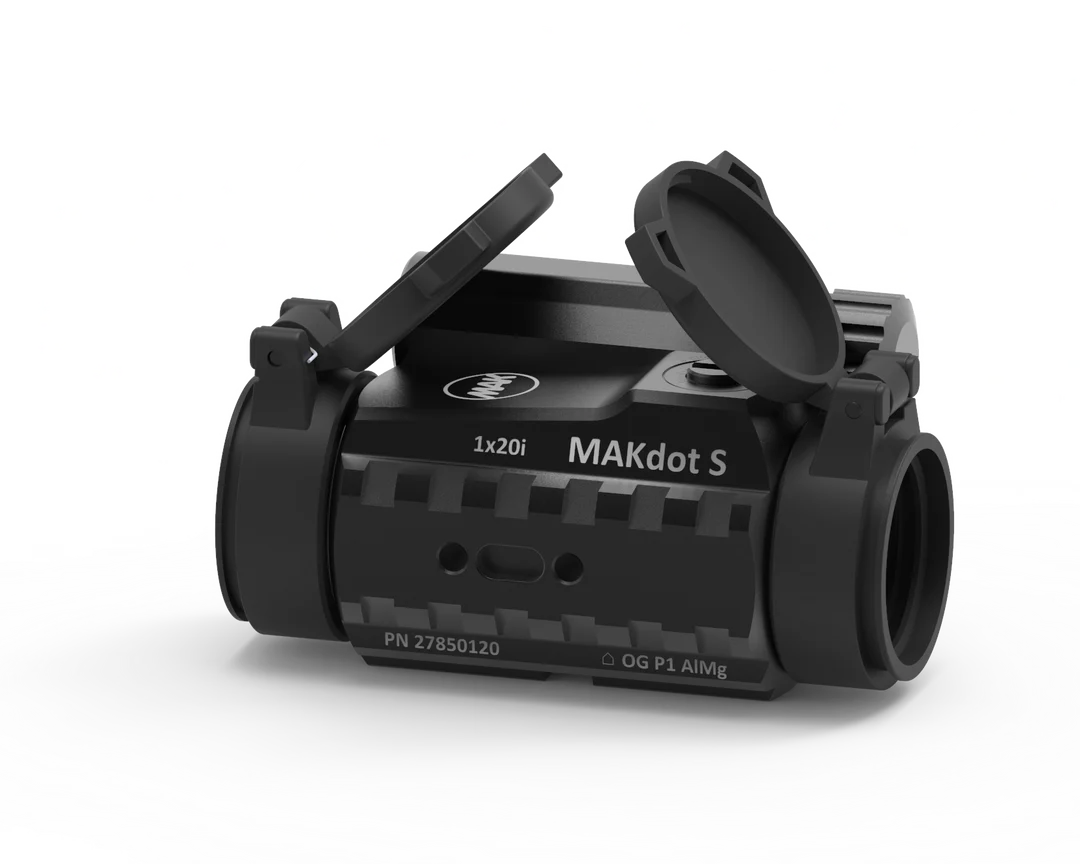

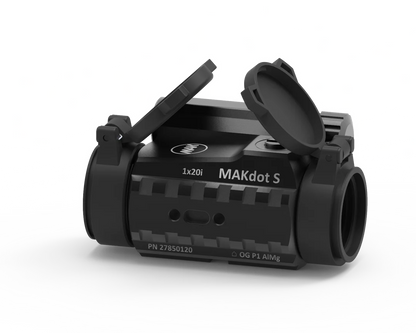

The MAKdot S 1x20i embodies the highest precision optics with its sophisticated closed red dot sight system. This German engineering feat delivers a bright, sharp 2 MOA aiming dot with 85% light transmission for a clear, undistorted target image in all lighting conditions.
Housed in a robust, sealed monoblock aluminum housing, the MAKdot S 1x20i is available with both Picatinny and modular mounts. The advanced digital illumination system offers 12 intensity levels (8+4) for optimal target acquisition in all environments.
Ideal for sport shooters, hunters and professionals who demand uncompromising reliability and precision in their optics.
Technical specifications:
Mechanical properties:
- Housing material: 6063 aluminum
- Color: Black
- Weight: 210g (Picatinny) / 140g (Modular)
- Dimensions: 71 x 67 x 50 mm (Picatinny) / 71 x 41 x 41 mm (Modular)

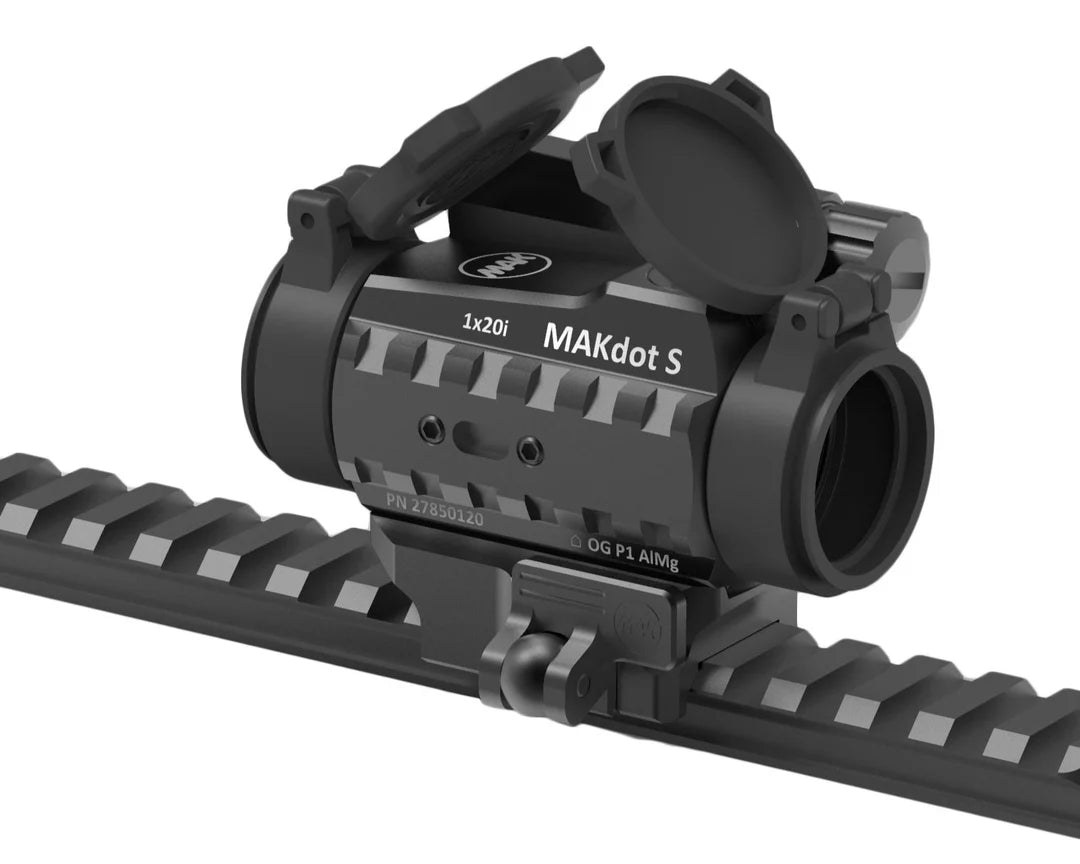

- Mounting options: Picatinny or Modular
Optical properties:
- Magnification: 1x
- Eye relief: Unlimited
- Click adjustment: 0.15 mrad
- Light transmittance: >85%
- Lens/Exit Pupil: 20mm
- Reticle: Red dot
- Red dot size: 2 MOA
Environmental characteristics:
- Operating temperature: -20°C to +70°C
- Storage temperature: -25°C to +75°C
- Water resistance: 400mbar (10m for 30min)
- Power supply: AAA 1.5V battery
- Filling gas: nitrogen (N)
- Lighting: Digital (8+4 levels)
- Environmental testing: MIL-STD-1913 (Picatinny) / MIL-STD-810 (Modular)
Standard accessories:
- Operating instructions
- Optics cleaning cloth
- Allen key
