Vortex Optics

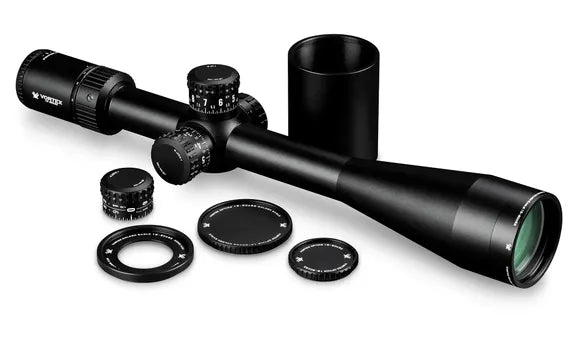

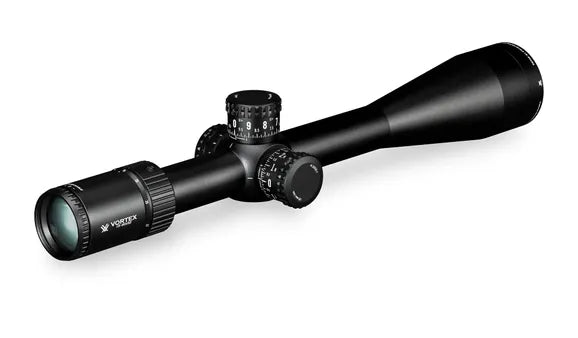

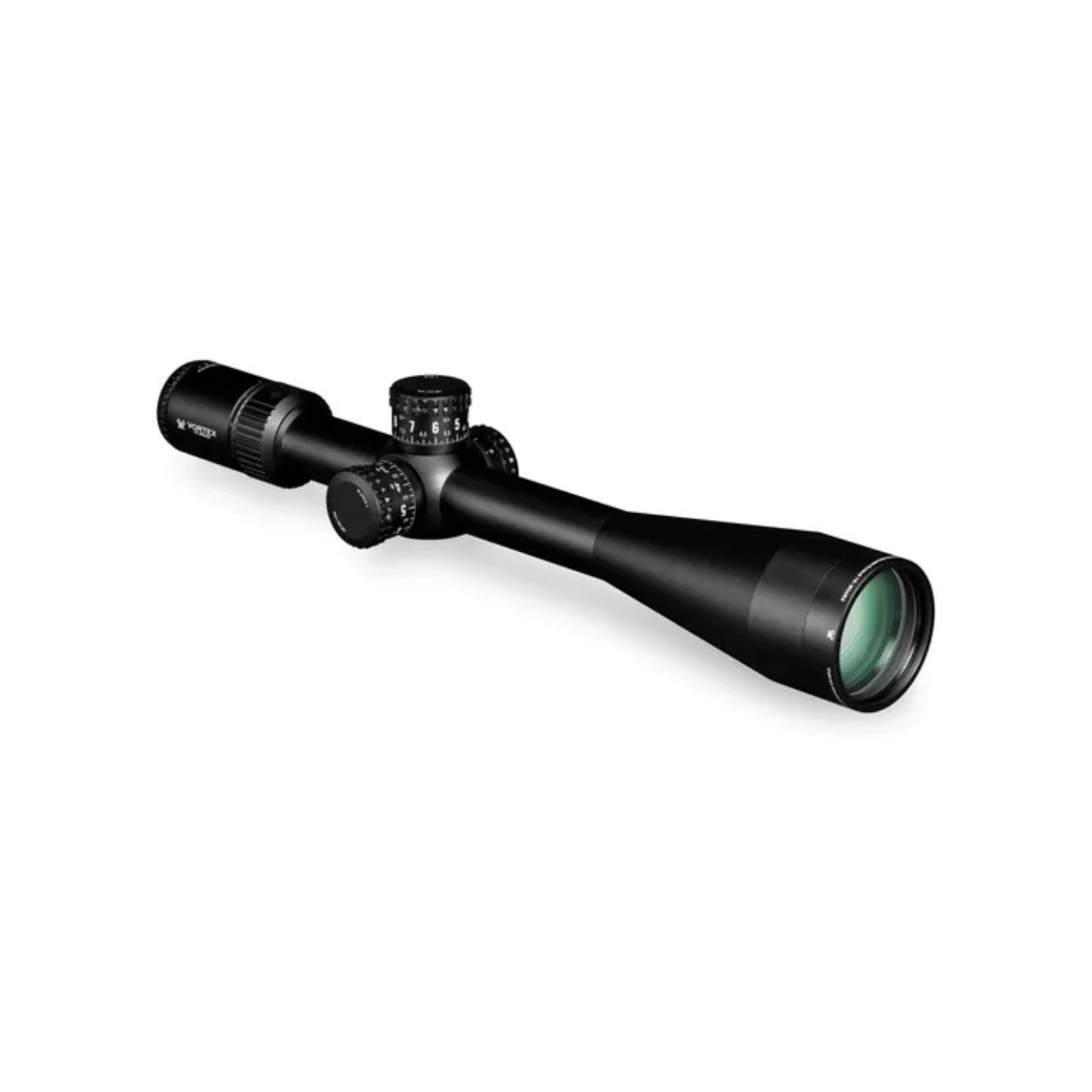

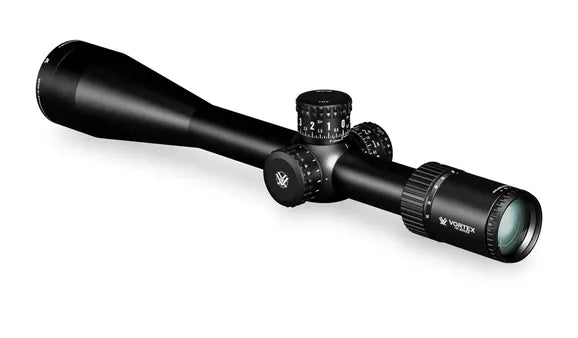

Vortex Golden Eagle HD 15-60x52 ECR 1 (MOA)
Vortex Golden Eagle HD 15-60x52 ECR 1 (MOA)
Regular price
$3,349.00 AUD
Regular price
Sale price
$3,349.00 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
Built for F-Class and Bench Rest shooters gunning for gold. The Golden Eagle® HD is engineered for tack-driving accuracy at extreme distances. Super-sharp resolution, powerful magnification, and fine second focal plane reticles bring long-range targets into crystal-clear focus. At just 29.7 ounces, it meets strict competition weight limits, delivering the precision, consistency, and confidence to take on any shot.
Golden Eagle HD 15-60x52 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 16.1 | 3.5 | 2.28 | 7.5 | 5.51 | 3.09 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.41 | 1.73 |
Specifications:
| Magnification | 15-60x |
|---|---|
| Objective Lens Diameter | 52 mm |
| Focal Plane | Second Focal Plane |
| Reticle | ECR-1 (MOA) |
| Eye Relief | 3.9" |
| Field of View | 6.3' - 1.7' @ 100 yds |
| Turret Style | Exposed |
| Tube Size | 30mm |
| Adjustment Graduation | 1/8 MOA |
| Travel Per Rotation | 10 MOA |
| Max Elevation Adjustment | 55 MOA |
| Max Windage Adjustment | 45 MOA |
| Parallax Setting | 20 yds. - ∞ |
| Length | 16.1" |
| Weight | 29.7 oz |
Features:
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Tall Exposed Turrets | Built for dialing elevation at extended ranges. |
| Extremely Fine Second Focal Plane Reticles | Consistent ultra-fine reticle size throughout the magnification range maximizes precision on known distance, long-range targets. Subtensions are accurate at 40x. |
| Ultra-Precise 1/8 MOA Adjustments | |
| Aperture Stop Ring | Broadens the depth of field allowing the shooter to more easily observe down-range mirage and other wind indicators while keeping the target in focus. |
| APO (Apochromatic) | Index-matched lenses correct color across the entire visual spectrum. |
| Plasma Tech | Cutting-edge application process provides unparalleled coating durability and performance. |
| Argon Gas Purged | Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |

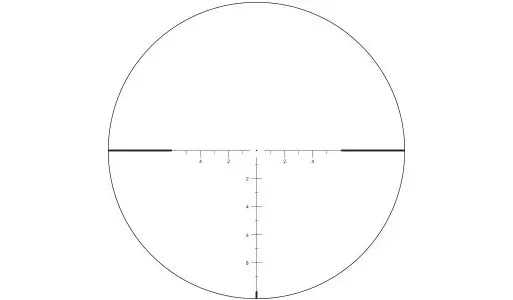

Reticle:
ECR-1 (MOA)
The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for holdover, and windage corrections. The floating center dot subtends 0.095 MOA at 40X.
