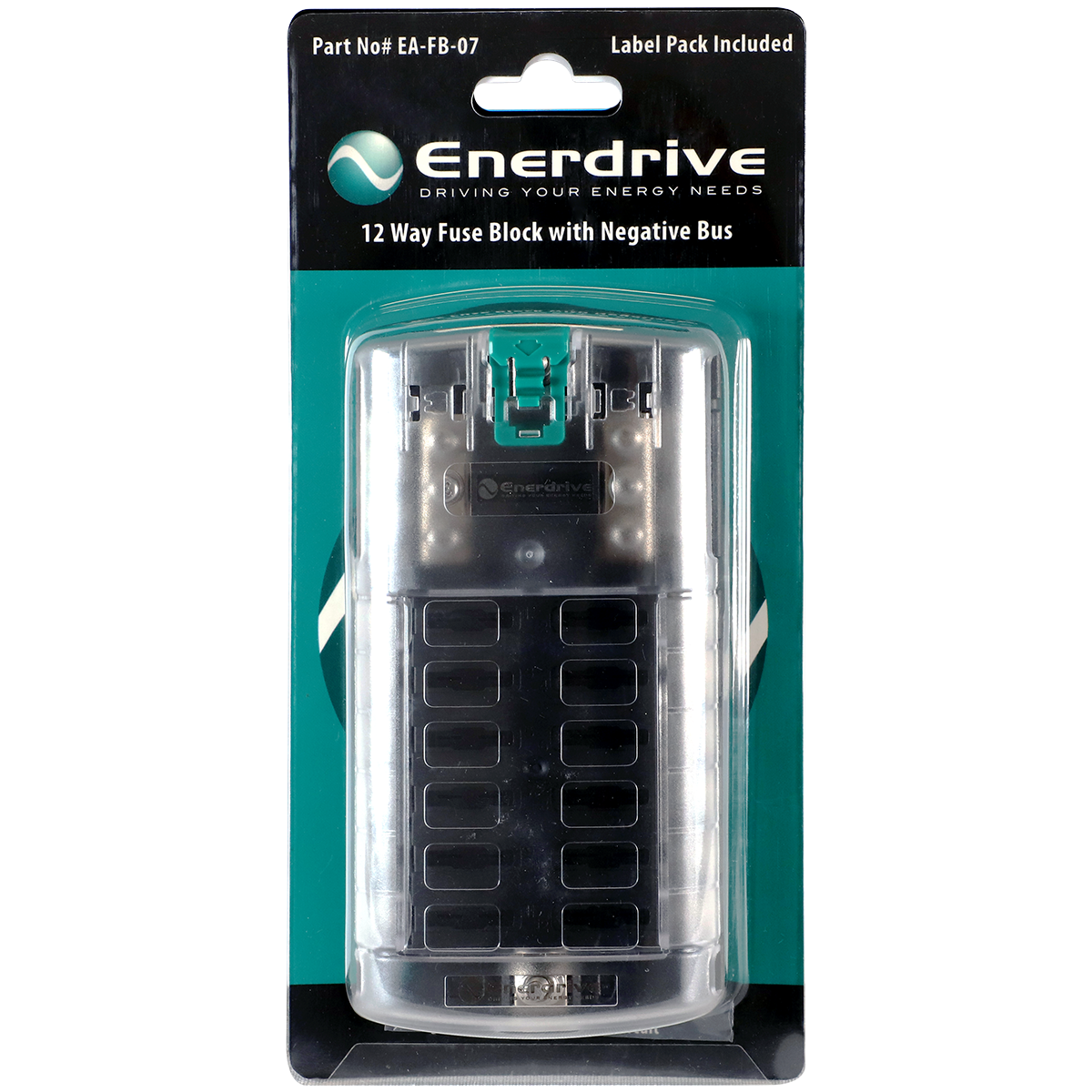

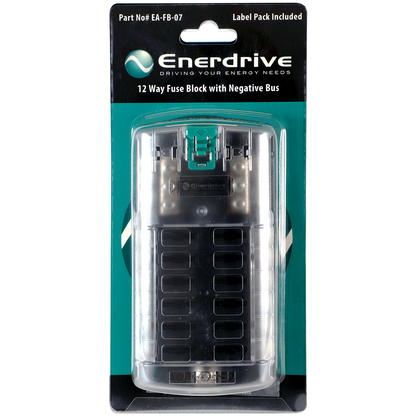

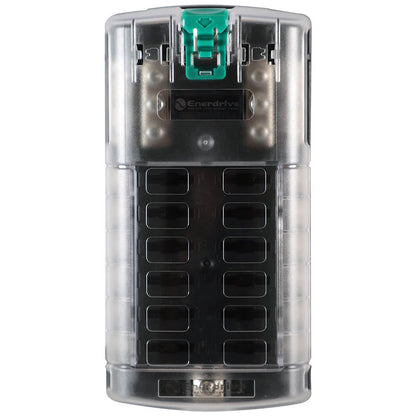

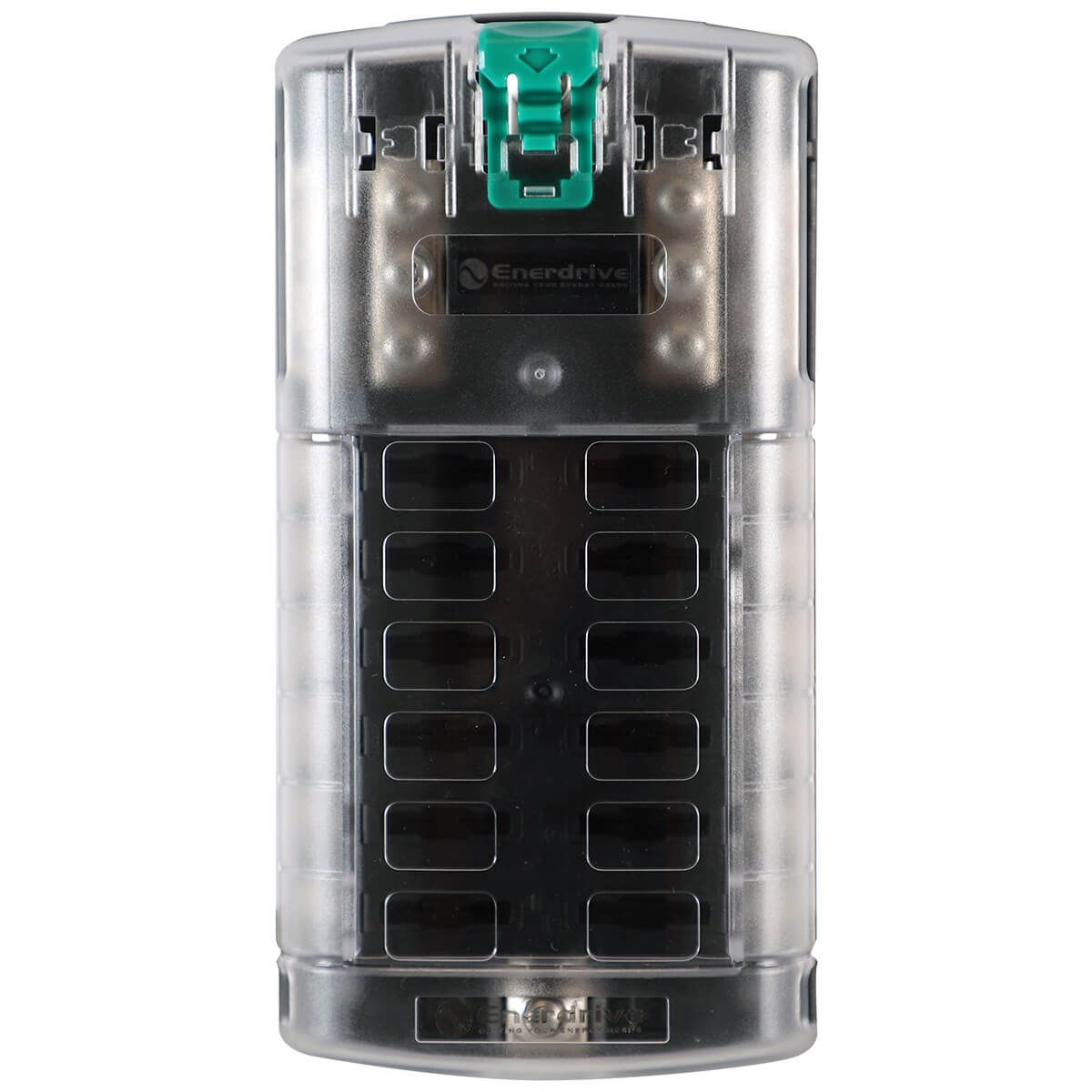

Fuse Block 12 Circuit with Negative Bus and Cover

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover

Consolidates branch circuits and in-line fuses

• Positive distribution bus with #10-32 stud
• 32V 100Amp Max – 30Amp Max per circuit
• Can be used for 24-hour circuits
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately
• Includes two label sets and screws.
• Retail Packaging

Resources

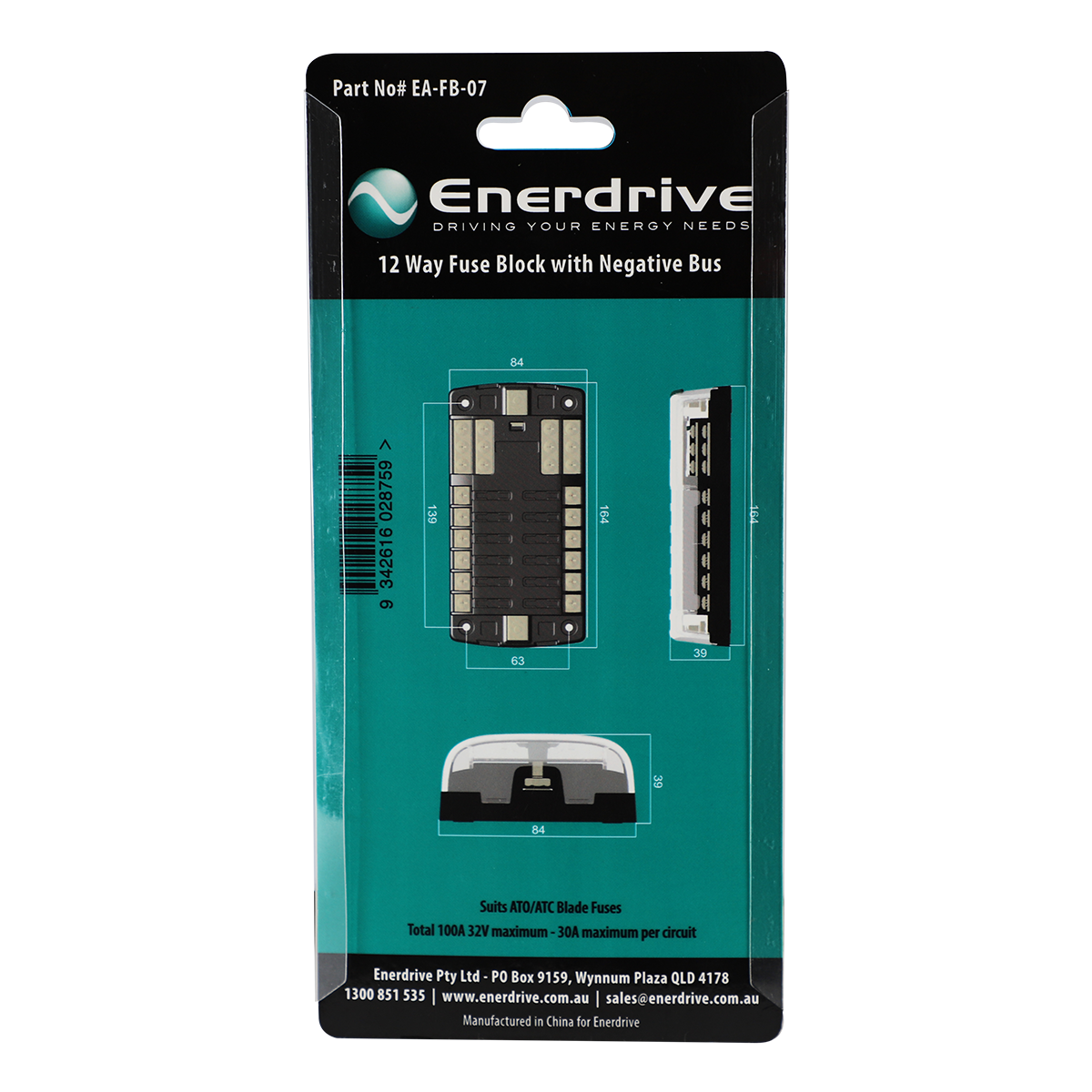

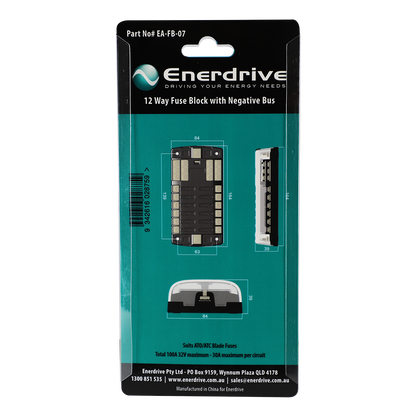

• Dimensioned Drawing
• Wiring Diagram
