Enerdrive | Dometic eSYS-N-EP-01 Off-Grid Power System

Introducing Enerdrive | Dometic’s eSYSTEM pre-wired board power system range for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive | Dometic have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time.

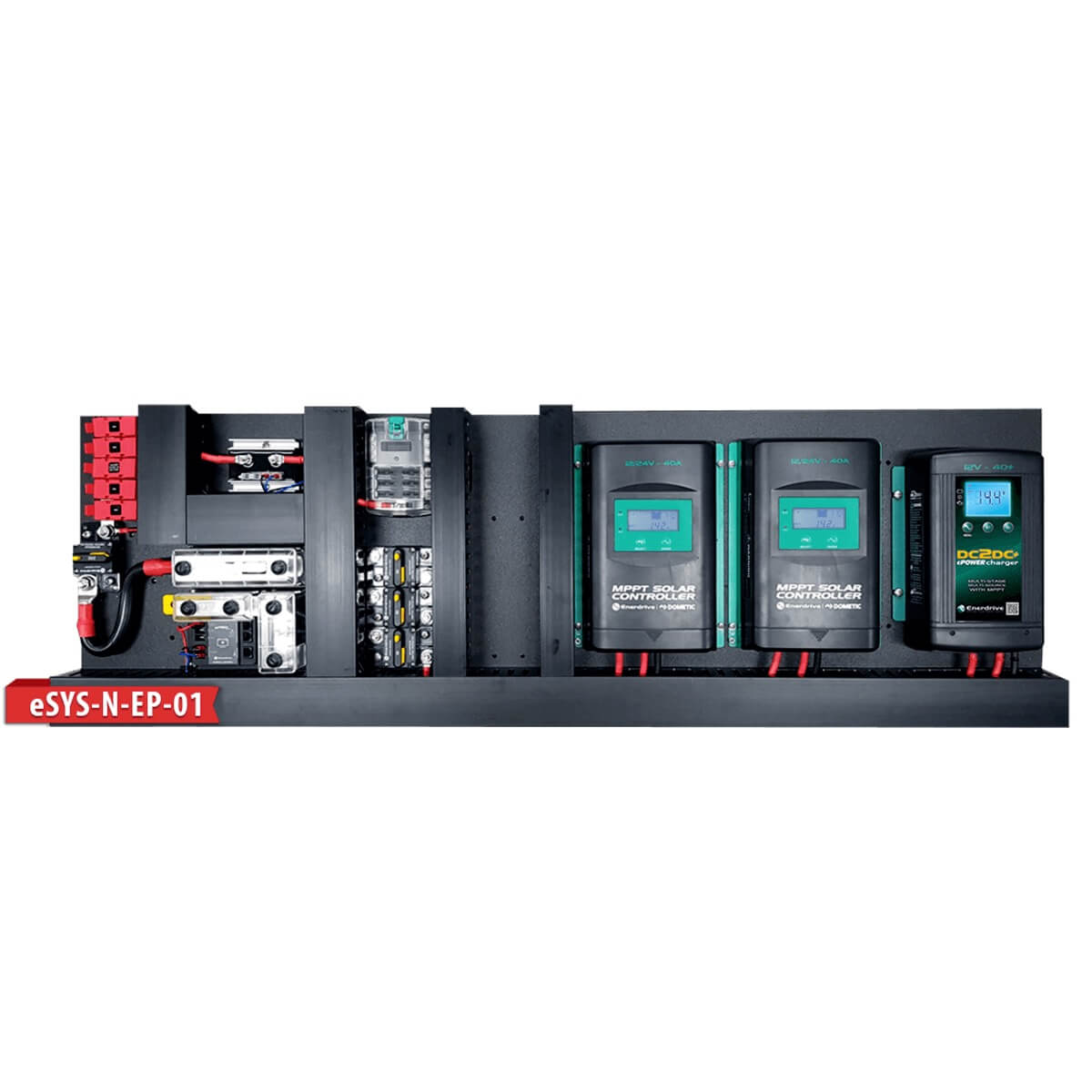

eSYS-N-EP-01

• 1190W x 380H x 90D mm
• Charge via a Vehicle input or Solar power;
  • Vehicle: 12 or 24v input, up to 50A Charging
  • Solar (DC2DC): up to 45VOC / 800W
  • Solar (Dual MPPT): up to 100VOC / 1800W
• ePRO+ Battery Monitor

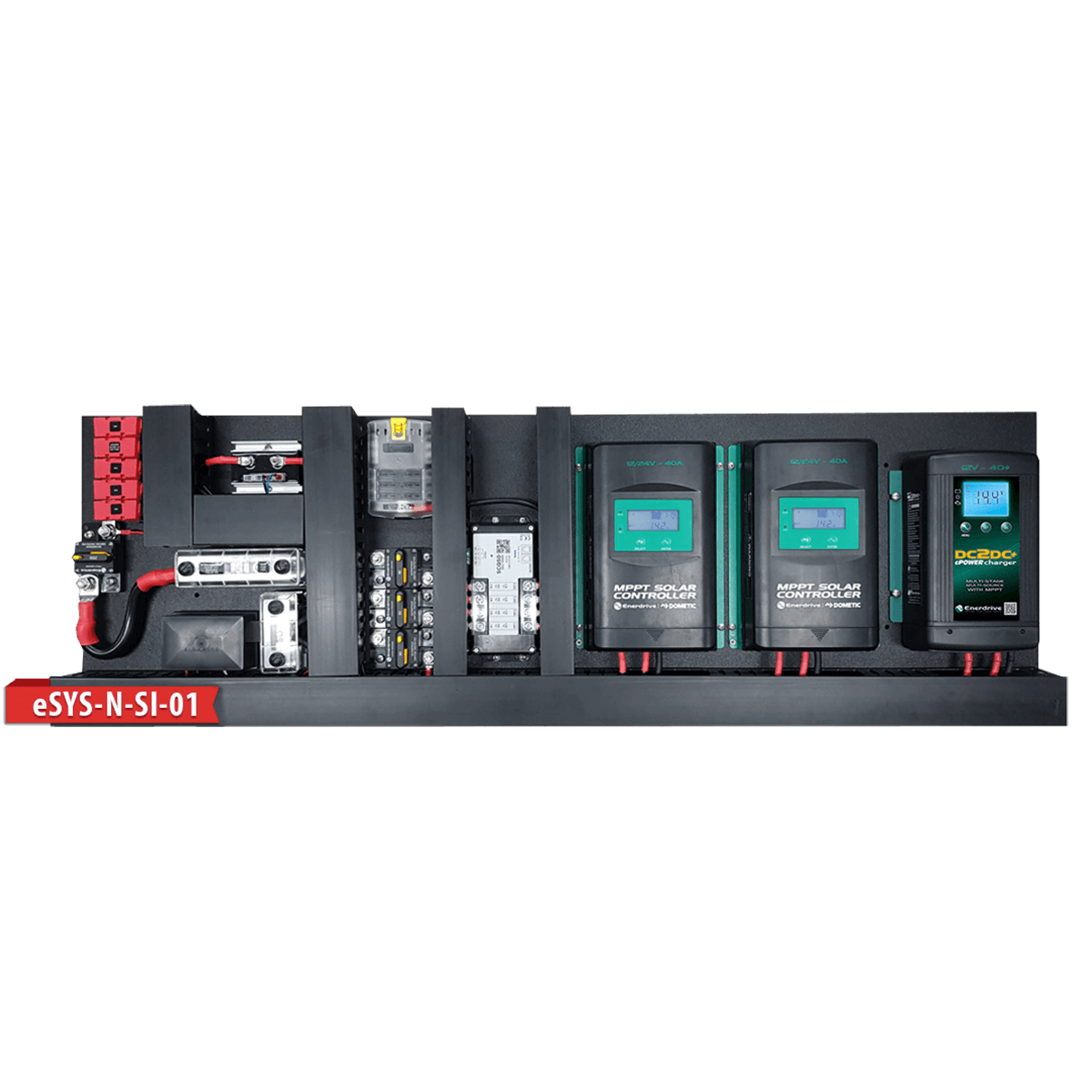

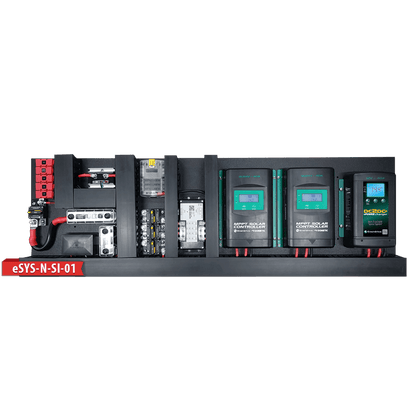

eSYS-N-SI-01

• 1190W x 380H x 90D mm
• Charge via a Vehicle input or Solar power;
  • Vehicle: 12 or 24v input, up to 50A Charging
  • Solar (DC2DC): up to 45VOC / 800W
  • Solar (Dual MPPT): up to 100VOC / 1800W
• Simarine Battery Monitor

Features

eSYS-N-EP-01

• 1190W x 380H x 90D mm
• Charge via a Vehicle input or Solar power;
  • Vehicle: 12 or 24v input, up to 50A Charging
  • Solar (DC2DC): up to 45VOC / 800W
  • Solar (Dual MPPT): up to 100VOC / 1800W
• ePRO+ Battery Monitor

eSYS-N-SI-01

• 1190W x 380H x 90D mm
• Charge via a Vehicle input or Solar power;
  • Vehicle: 12 or 24v input, up to 50A Charging
  • Solar (DC2DC): up to 45VOC / 800W
  • Solar (Dual MPPT): up to 100VOC / 1800W
• Simarine Battery Monitor

Resources

• Download Wiring Diagram
