Vortex Optics

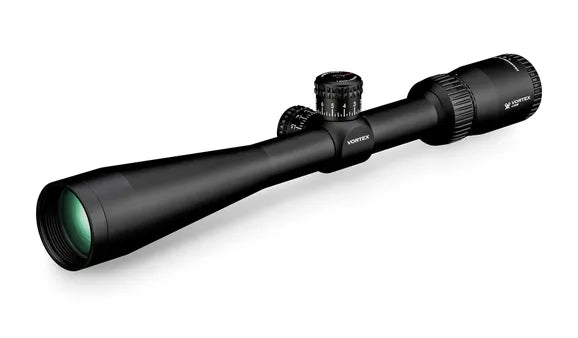

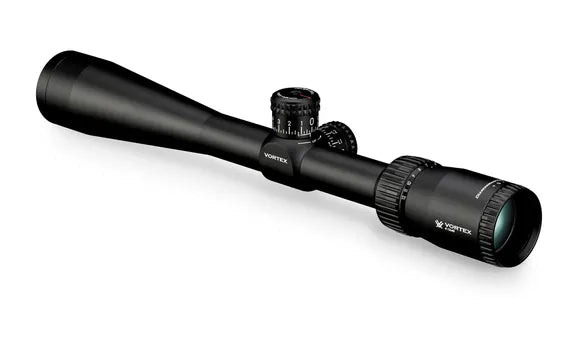

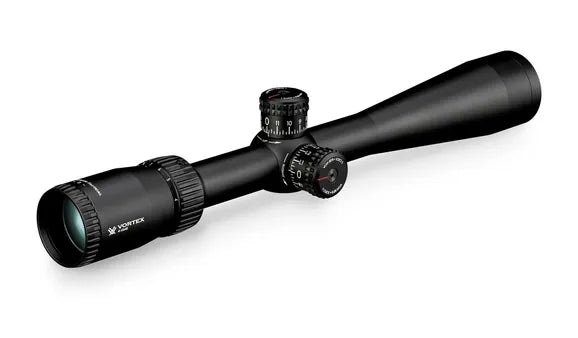

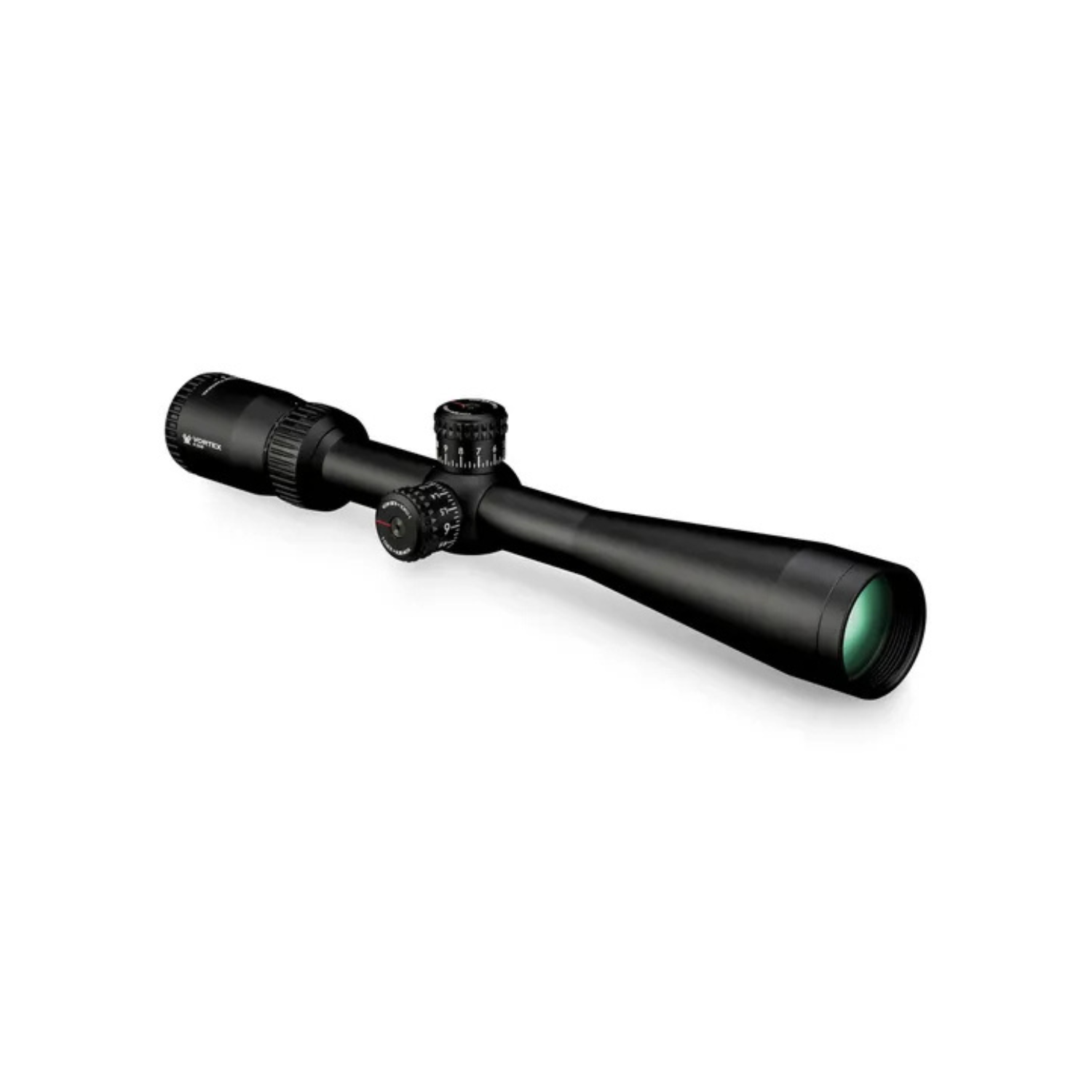

Vortex Diamondback Tactical 4-12x40 VMR1 (MOA) SFP
Vortex Diamondback Tactical 4-12x40 VMR1 (MOA) SFP
Couldn't load pickup availability
Diamondback® Tactical brings the hardworking legacy of the Diamondback® name into the tactical world, delivering trusted performance for shooters looking to extend their effective range. With solid construction and sharp, clear glass, it keeps you focused whether dialing in for mid-range shots or stretching out to 1,000 yards. Meant for new shooters seeking confidence in their windage and elevation adjustments. It’s tough enough to withstand hard use while delivering tack-driving accuracy, shot after shot.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.08 | 1.9 | 2.15 | 5.3 | 5.3 | 3.43 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.86 | 1.71 |
Specifications:
| Magnification | 4-12x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |
| Reticle | VMR-1 (MOA) |
| Eye Relief | 3.9" |
| Field of View | 23.6' - 7.9' @ 100 yds |
| Turret Style | Exposed |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 100 yds. |
| Length | 14.1" |
| Weight | 17.5 oz |
Features:
| XD™ Optical System | Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |

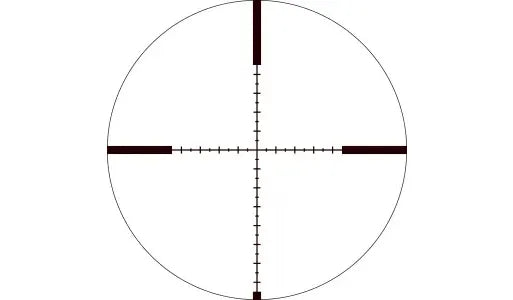

Reticle:
Designed to maximize long distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads.
