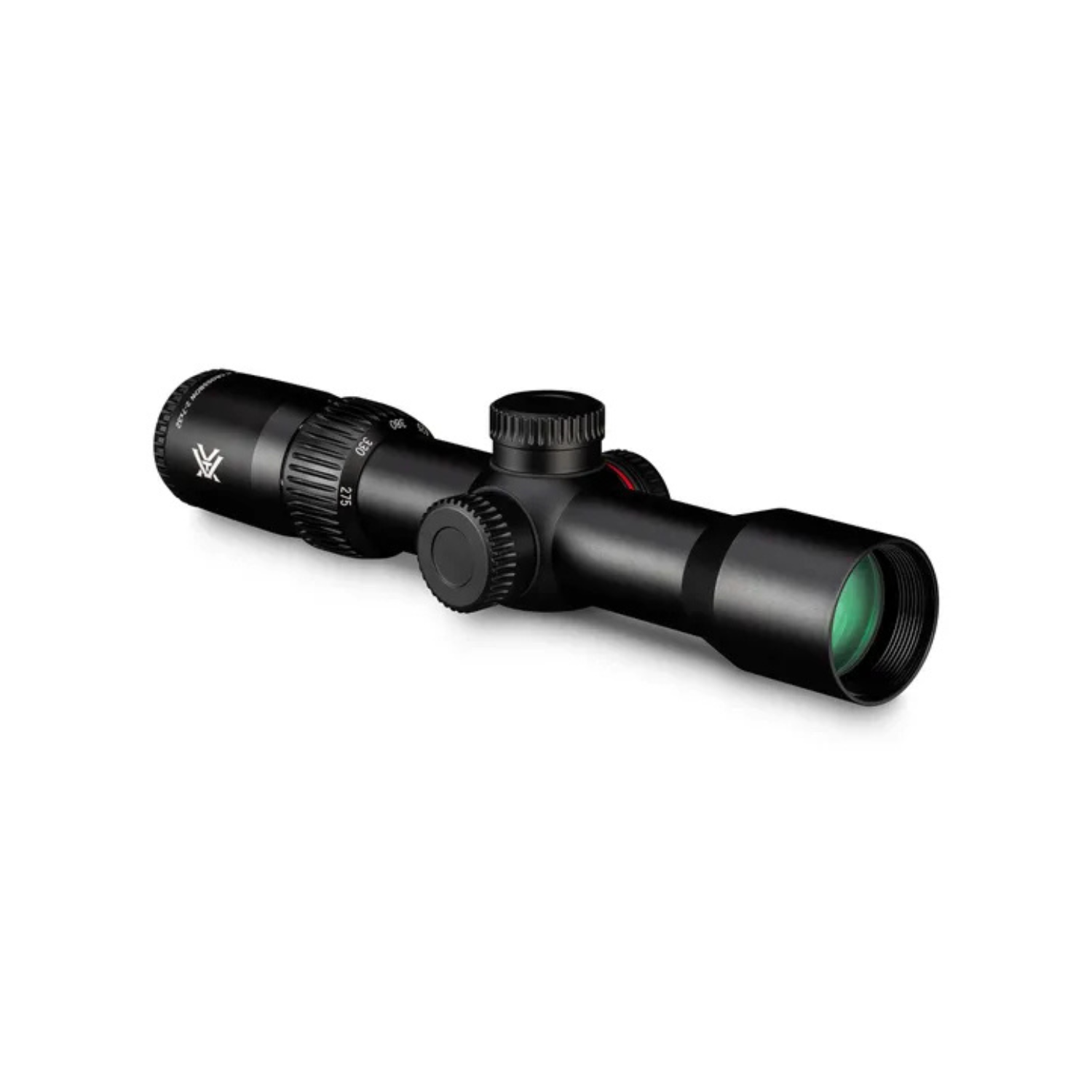

Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination
Couldn't load pickup availability
First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Our purpose-built reticle not only gives you holdover points out to 100 yards, it features red and green illumination for low-light shooting. We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, we’re including rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box. 30mm rings included have a height of 1.1" (28mm).
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | ||
| 9.5 | 1.7 | 1.5 | 4.5 | ||
| Heights | |
|---|---|
| H1 | H2 |
| 1.5 | 1.5 |
Specifications:
| Magnification | 2-7x |
|---|---|
| Objective Lens Diameter | 32 mm |
| Focal Plane | Second Focal Plane |
| Reticle | XBR-2 (MOA) |
| Eye Relief | 2.7" |
| Field of View | 57.5’ – 16.4’ @ 100 yards |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 30 MOA |
| Max Elevation Adjustment | 160 MOA |
| Max Windage Adjustment | 160 MOA |
| Parallax Setting | 75 yds. |
| Length | 9.5" |
| Weight | 14.0 oz |
Features:
| SD Optical System | High-quality optical system reduces chromatic aberration and delivers clean, bright, sharp images. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Dual Illumination in Red/Green | Red and green illumination provides precise aiming under low-light conditions. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
Reticle:
The XBR-2® reticle is specifically designed for crossbows for a 40-yard zero and fast, accurate holdovers from 20-100 yards. The reticle is also equipped with dual illumination, red or green, for accuracy in low light.
