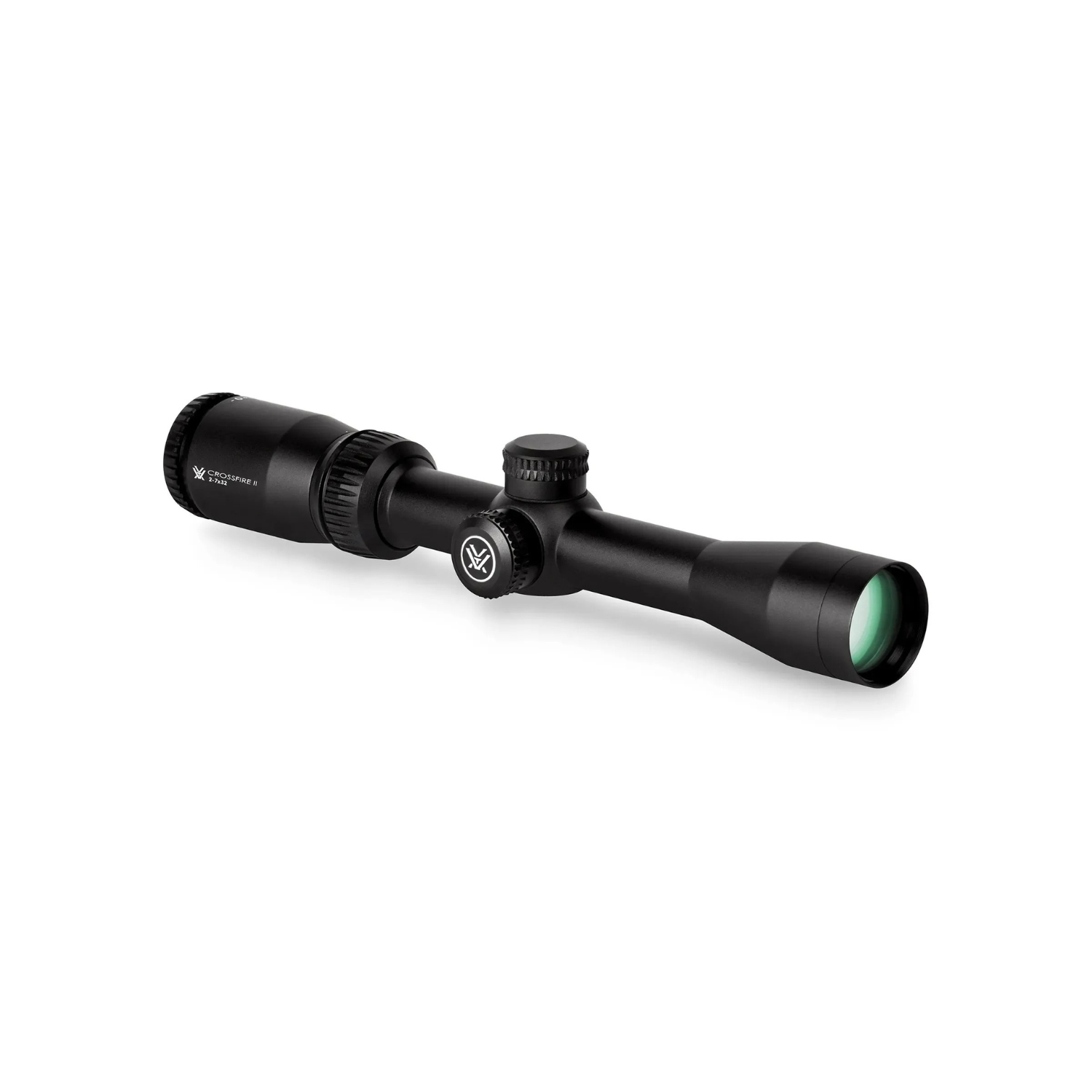

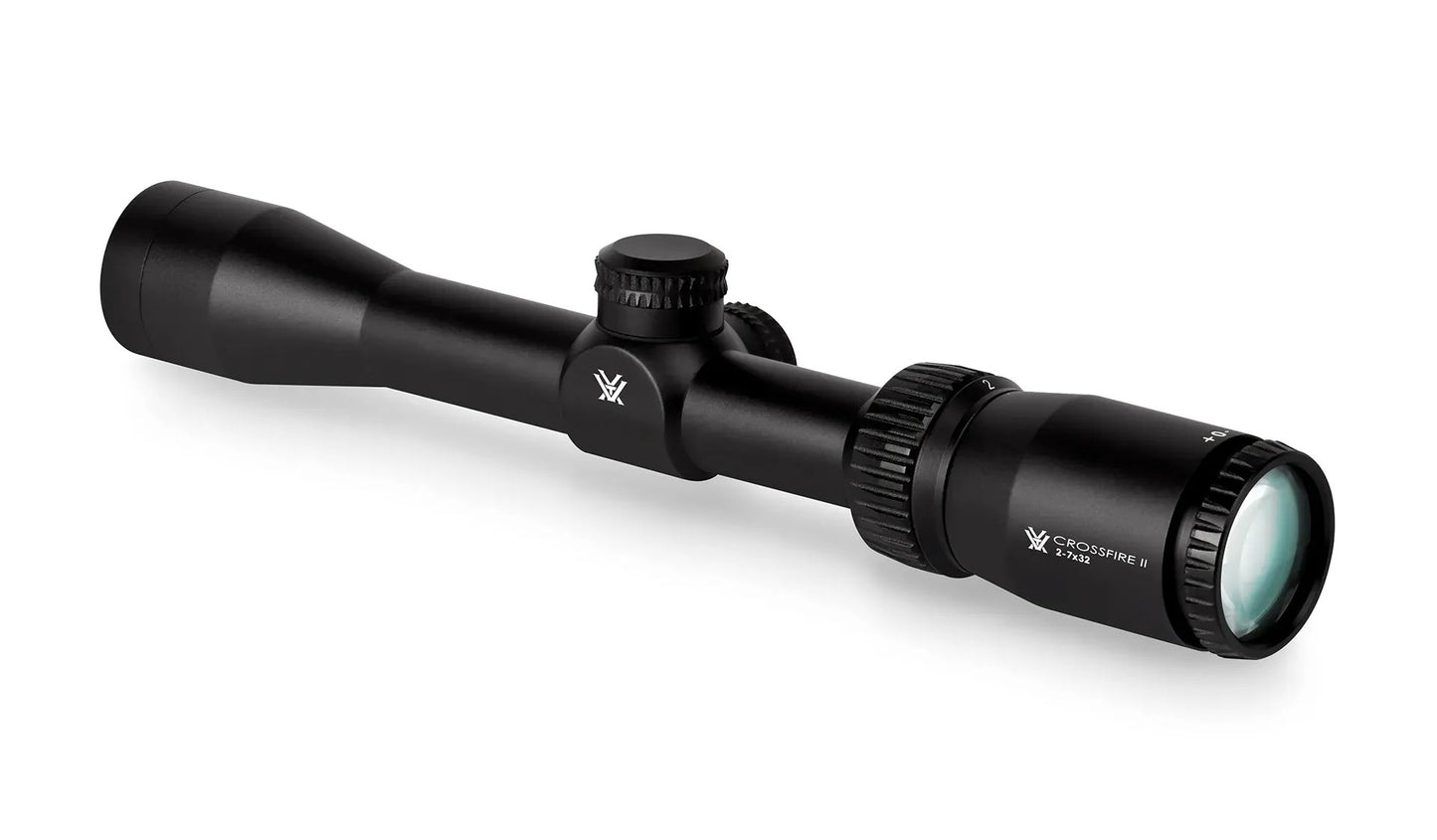

Vortex Crossfire II 2-7x32 Rimfire V-Plex (MOA)

Clearer. Tougher. Brighter. Our popular Crossfire^® riflescopes are completely redesigned and built to exceed the performance standards of similarly-priced riflescopes. Longer eye relief, a fast-focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver - and then some.

Crossfire II 2-7x32 Rimfire Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
11.52	1.86	1.54	5.05	2.78	3.69

Heights
H1	H2
1.53	1.61

Specifications:

Magnification	2-7x
Objective Lens Diameter	32 mm
Focal Plane	Second Focal Plane
Reticle	V-Plex (MOA)
Eye Relief	3.9"
Field of View	42.0' - 12.6' @ 100 yds
Turret Style	Capped
Tube Size	1 inch
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	60 MOA
Max Windage Adjustment	60 MOA
Parallax Setting	50 yds.
Length	11.5"
Weight	13.9 oz

Features:

SD Optical System	High-quality optical system reduces chromatic aberration and delivers clean, bright, sharp images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Nitrogen Gas Purged	Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Fast-Focus Eyepiece	Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize	Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof	Designed to withstand harsh weather conditions.
Fogproof	Designed to withstand a wide range of temperatures.
Shockproof	Designed to withstand the highest levels of recoil and impact.

Reticle:

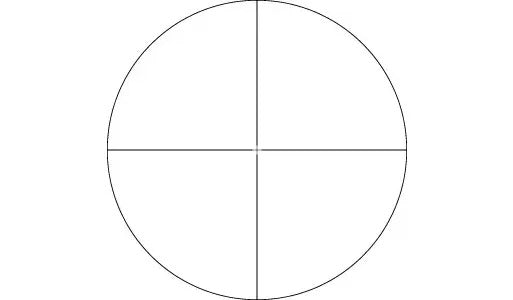

V-PLEX RETICLE (MOA)

A popular all-purpose hunting reticle intended for a wide variety of hunting applications.

Manuals & Parts:

 Product Manual (PDF) (2.97 MB)

 Parts Diagram (PDF) (707.12 kB)
